Welded Mesh Fence Secure 476 Double – Optimal Security Solution

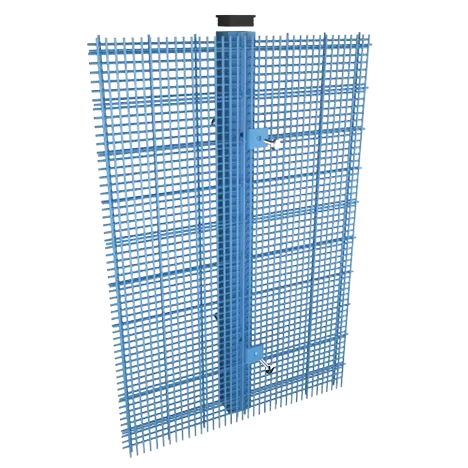

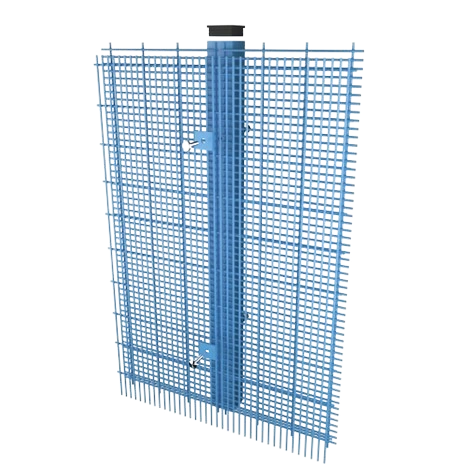

Welded Mesh Fence Secure 476 Double
Welded Mesh Fence Secure 476 Double provides maximum strength security to protect while remaining highly durable. The fence structure featuring double wires provides exceptional resistance against damage through impact and cutting which makes it suitable for secured sites. The welded mesh security system creates a stable structure which maintains visibility throughout its applications in industrial, commercial and residential settings. The Welded Mesh Fence Secure 476 Double provides both maximum security standards and enduring utilization capability for facility protection and perimeter safety applications.
The Ideal Fencing Solution for Sensitive Areas
Double-Profiled Mesh – Reinforced with two horizontal wires for increased stability and strength.
High-Security Design – This security design prevents unauthorized entry and climbing attempts through its small 76.2x12.5mm mesh openings.
Durable Construction – A durable design features 4mm vertical and horizontal wires that make it resistant to damage from external impacts.
Enhanced Visibility & Protection – Security Design Achieves Both Protective Measures and Maintains Background Monitors Integrity.
Key Features of Secure 476 Double
| Mesh Size | 76.2 x 12.5 mm with a special 2D profile for additional reinforcement |
| Wire Diameter | 4 mm or 5 mm Dia Vertical and Horizontal Wires |
| Material | Galvanized steel |
| Post Dimensions |
50 x 50 mm (up to 1.5 m high) 60 x 60 mm SHS (up to 3000 mm) 50 x 100 mm RHS (up to 6000 mm) |
| Standard Panel Width | 2500 mm (Customizable) |
| Panel Heights | 950 mm, 1450 mm, 1950 mm (stackable up to 6000 mm) |
| Tensile Strength | Min. 500 N/mm² |
| Welding Strength | 50% of total tensile strength in accordance with EN 10223-7 |
| Post Centers | 2500 mm (Customizable) |
| Colors | Black RAL 9005, Green RAL 6005, Customizable |
| Mesh Size |
| 76.2 x 12.5 mm with a special 2D profile for additional reinforcement |
| Wire Diameter |
| 4 mm or 5 mm Dia Vertical and Horizontal Wires |
| Material |
| Galvanized steel |
| Post Dimensions |
|
50 x 50 mm (up to 1.5 m high) 60 x 60 mm SHS (up to 3000 mm) 50 x 100 mm RHS (up to 6000 mm) |
| Standard Panel Width |
| 2500 mm (Customizable) |
| Panel Heights |
| 950 mm, 1450 mm, 1950 mm (stackable up to 6000 mm) |
| Tensile Strength |
| Min. 500 N/mm² |
| Welding Strength |
| 50% of total tensile strength in accordance with EN 10223-7 |
| Post Centers |
| 2500 mm (Customizable) |
| Colors |
| Black RAL 9005, Green RAL 6005, Customizable |

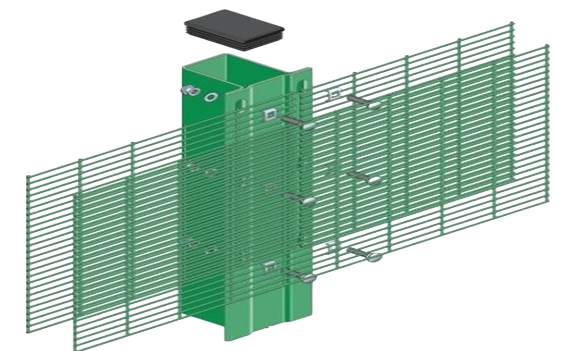

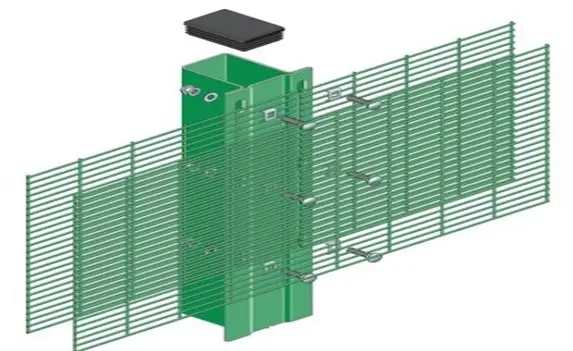

Key Components of Welded Mesh Fence Secure 476 Double

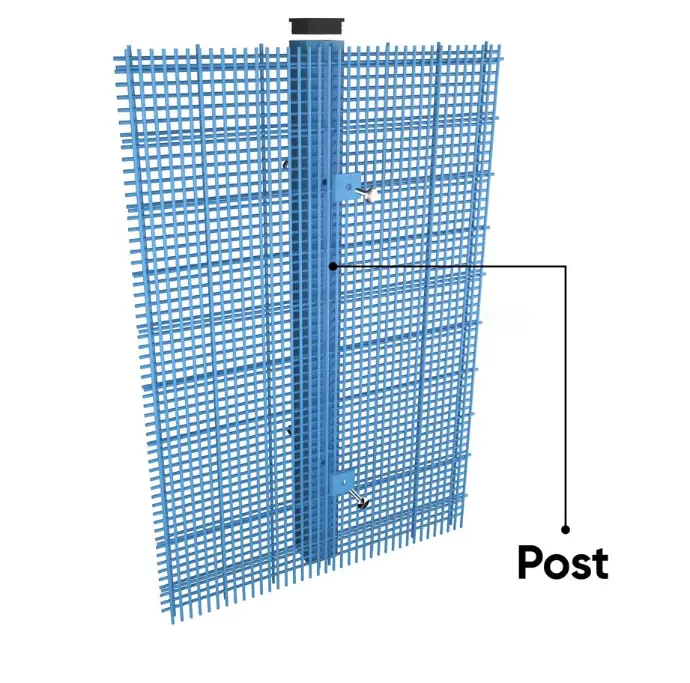

Posts
Welded Mesh Fence Secure 476 Double posts serve major security requirements by offering complete dimensions up to 50x100mm while providing various fixing options which guarantee solid stability during installation.
Over-length set in the ground
Base plated for bolting onto concrete
Cranked for wall mounting
Covered with a plastic cap on top
Extended with a 45-degree crank on top
Extended with a double (Y) crank on top

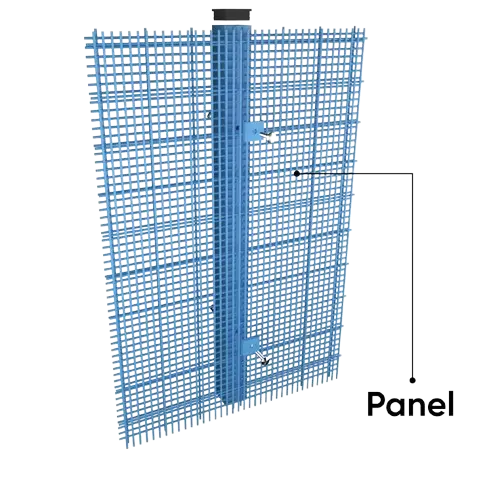

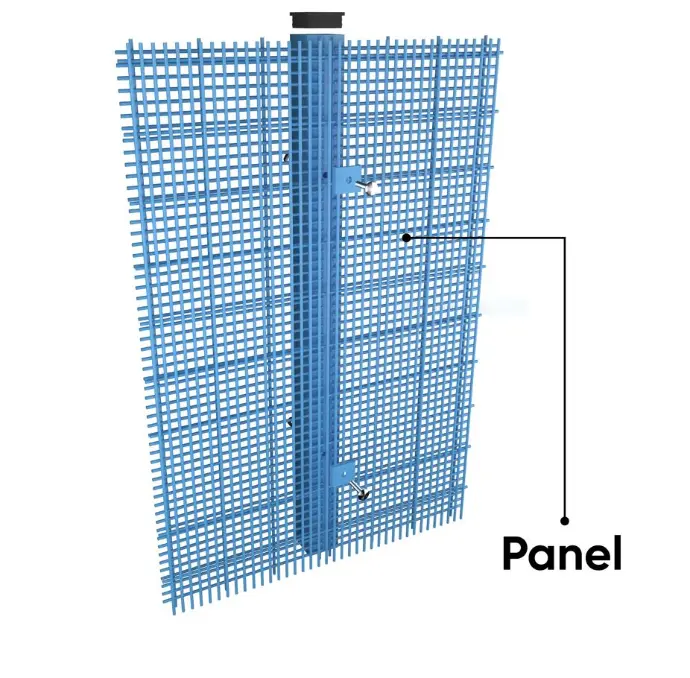

Panels:
Panels equipped with two overlapping 4mm wire layers result in an effective security mesh which prevents both climbing and cutting attempts thus serving best for demanding security requirements. The height customization options offered by double-layered 4mm wires extend from 6000mm according to security needs.

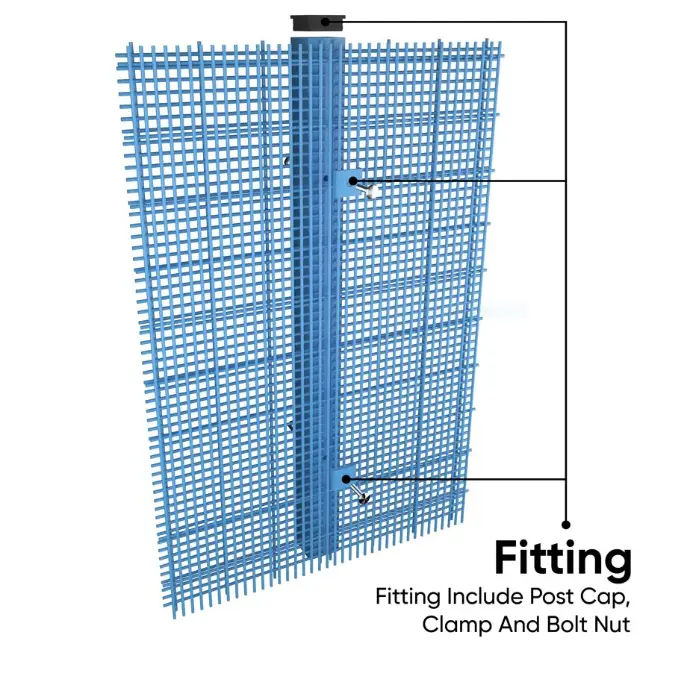

Fittings
Panels are fastened to posts through 40x50mm clips combined with 50x5mm flat bars which produce strong attachments that prevent breaches at the same time
Gates
The security system integrates complementary gates that provide continuous protection and exist either as manual gates or automatic gates to match the secured fencing.
Finishing Options
Hot-Dip Galvanizing
Components made from steel need to be hot-dipped according to BS EN ISO 1461 standards for achieving maximum corrosion defense and prolonged maintenance duration
Powder Coating
The product requirements of BS EN 13438 demand hot-dip galvanizing then coating with high-quality powder to achieve greater durability and visual appeal.
Marine-Grade Protection
A specialized marine-grade coating system should be applied to buildings located within 500 meters of saltwater or estuaries to ensure resistance against salt-induced corrosion.
PVC Coating
The PVC-coated welded mesh fence Secure 476 Double provides secure cover with a long-lasting weatherproof finish. The protective coating extends product lifespan by resisting corrosion while maintaining a professional-smooth outlook.
Key Advantages of Our Customizable Installation
| Tailored Design | Our security fence design process allows clients to specify how high their barrier should be while choosing between different materials and styles. |
| Site-Specific Adjustments | The system makes site-specific modifications so it perfectly fits diverse terrains at all locations. |
| End-to-End Support | Our service protects clients through full assistance from project commencement right up to final establishment. |
| Precision & Quality Assurance | Our advanced techniques together with high-quality materials enable us to achieve long-term reliability, security, and durability throughout all our installations. |
| Tailored Design |
| Our security fence design process allows clients to specify how high their barrier should be while choosing between different materials and styles. |
| Site-Specific Adjustments |
| The system makes site-specific modifications so it perfectly fits diverse terrains at all locations. |
| End-to-End Support |
| Our service protects clients through full assistance from project commencement right up to final establishment. |
| Precision & Quality Assurance |
| Our advanced techniques together with high-quality materials enable us to achieve long-term reliability, security, and durability throughout all our installations. |
Applications of Welded Mesh Fence Secure 476 Double
Customization and Installation
Every fencing solution at Hitech Fence goes through customized installation because clients can specify exact requirements during the process. Our expert team delivers full support beginning with design through to installation to establish a perfect secure installation that matches specific site layouts together with security requirements.
Downloads
Get in Touch with Hitech Fence
Check out Hitech Fence because they deliver modern fencing solutions which combine robustness and attractive appearance while maintaining security measures. Our fences have been designed to perfectly complement perimeter designs as they represent the perfect combination of elegance and security performance.
Hitech Fence provides lasting solutions that unite great quality with innovative design elements.
