A New Era of Protection Against Aerial Drone Threats
As drone technology is evolving at an alarming pace, the skies over our B&C assets are much more
permeable than before. In national security terms this is a solid problem, where drones present
an increasing menace to key infrastructure and facilities throughout the Kingdom of Saudi
Arabia, both through surveillance and espionage, as well as the risk of airborne explosives.
Key Features That Set Us Apart
Key Features That Set Us Apart
High Strength Fabric Mesh
The fence is designed using galvanized steel wire, 1350+ MPa tensile strength and therefore has the capacity to intercept drones that may be moving at a rate of 250 km/h, 80 kilograms of weight with a possible payload of 5 kilograms of explosive material.
Robust Pole Design

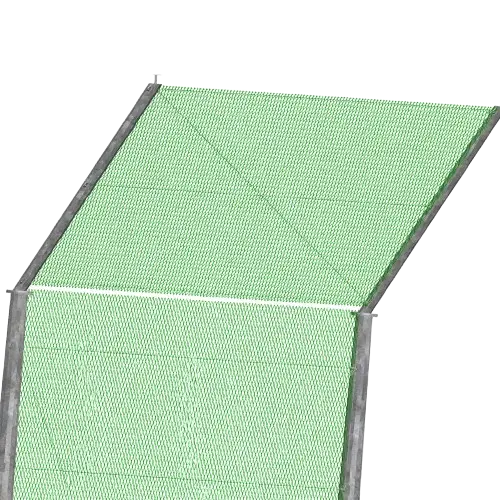

The support posts are cross-sectional to be 3 meters above the asset, making a robust overhead protective structure. The following inward crank angle of 30° introduces a new level of defense, preventing easy overflight, hovering, or payload drops. Constructed from hot-dip galvanized steel to withstand the elements over time.
Optimized Safety Offset
Each system is installed with a 7 meter standoff in front of the core asset as a critical buffer to help release blast pressure in the event of an explosive drone strike—reducing collateral harm and maximizing site safety.
Extreme Weather Resistance
Hitech Anti-Drone Fence has been created to withstand harsh outdoor use and consistently operate in the following conditions:
- Extreme cold and hot temperatures (−10°C to +60°C)
- Up to 95% humidity
- Wind speeds reaching 112 km/h
Product Overview

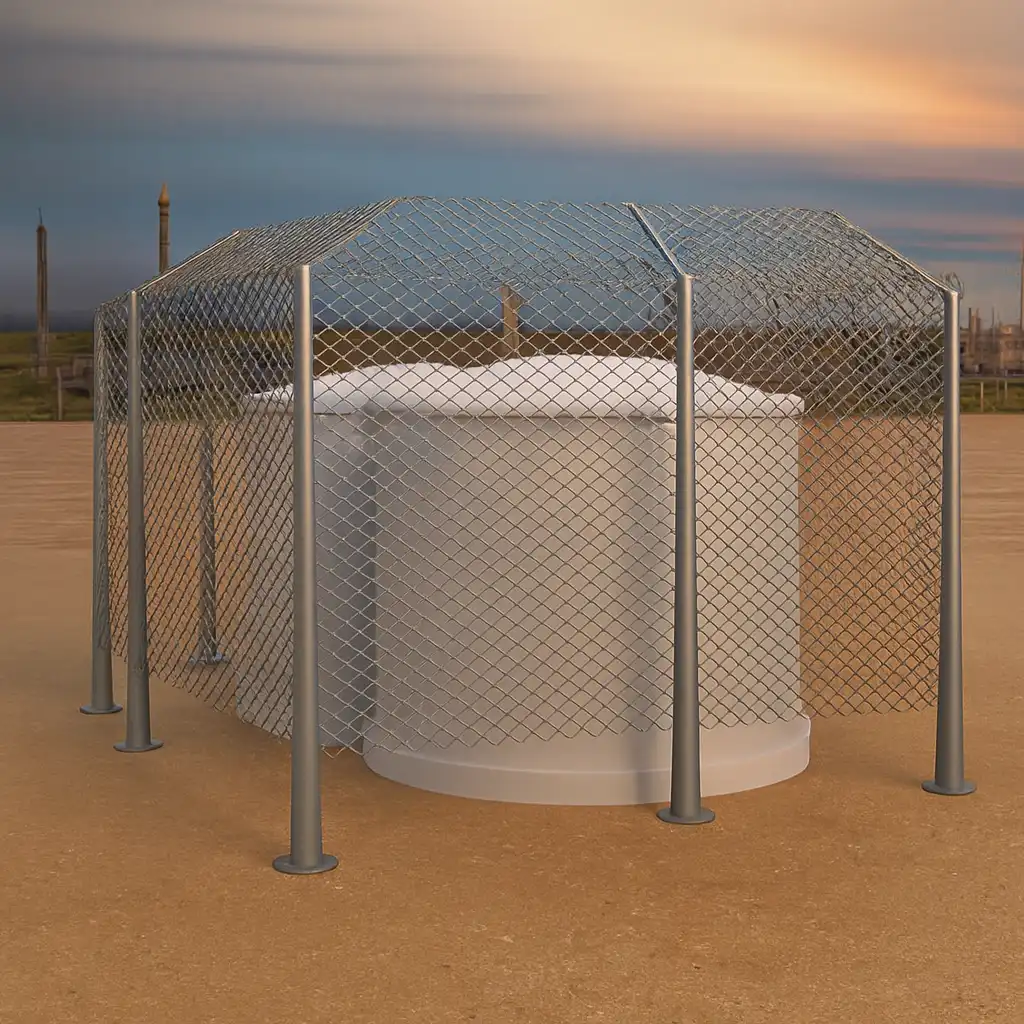

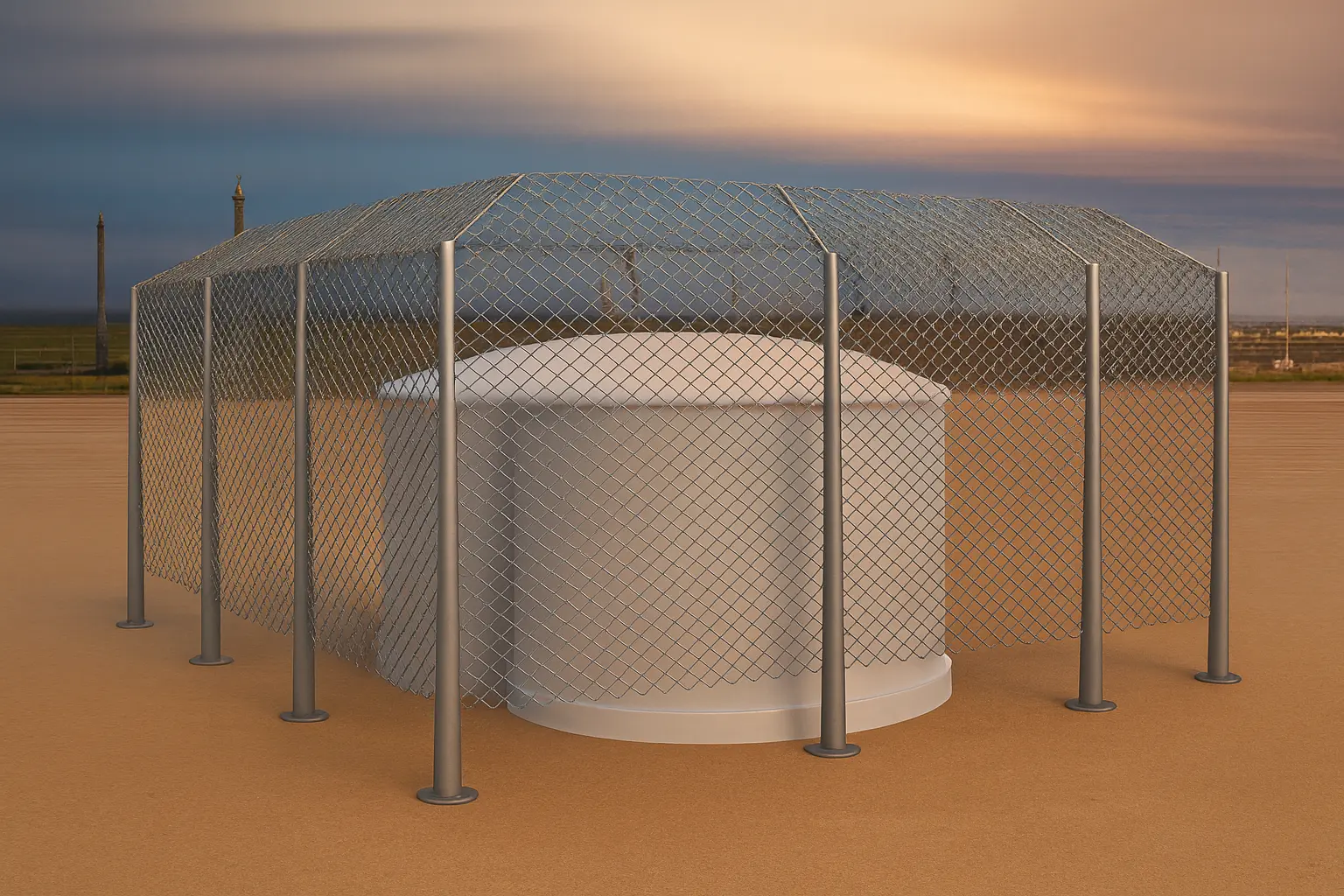

The Hitech Anti-Drone Fence is a strategically engineered vertical defense that protects valuable infrastructure. Using high-tensile wire mesh, anti-corrosion posts, an explosion-relief clearance, and an overhead canopy, it forms a fortified shield against hostile drone incursions— even under high wind loads and destructive payloads.
Hitech Anti-Drone Fence is the first of its kind physical aerial defense interface, designed to target, pause, and eliminate any drone before they can reach their sensitive areas. Designed according to the strictest rules of HCIS SEC-21, this is a well-crafted system to protect facilities including, but not limited to, fuel depots, energy holding systems, transformer yards and industrial complexes.
Design Excellence & Regulatory Compliance
The Hitech Anti-Drone Fence is completely designed to be compliant with the HCIS SEC-21 guidelines as per the High Commission of Industrial Security to make sure your project complies with the most demanding security and safety standards of the Kingdom.
Our system covers
● Passive drone defense observance
● Structural load and wind resistance validation
● Explosive impact loads testing
● Incorporation of foundation and geotechnical design
● Site-specific risk assessments (SRA)
Request a free Quote for Anti-Drone Fencing Today!
Technical Specifications
| Component | Specification |
|---|---|
| Mesh Opening | 100 × 70 mm – Ensures limited drone passage |
| Wire Type | High-Tensile Galvanized Steel |
| Wire Diameter | 2.70 mm – Balanced for flexibility and impact resistance |
| Tensile Strength | ≥ 1350 MPa – Capable of halting high-speed drone impact |
| Wire Rope | 6 mm Hot-Dip Galvanized – Enhanced structural tension |
| Post Height | 3 meters above asset – Covers aerial entry zones |
| Crank Angle | 30° Inward – Redirects or intercepts incoming drones |
| Coating Standard | Hot-Dip Galvanized as per ASTM A123 – Corrosion protection |
| Mesh Width | Up to 6 meters – Allows wide-area coverage |
Contact Us
Protect your assets with Hitech Fence’s Anti-Drone Fence. For consultations, demonstrations, or inquiries:
Empower your infrastructure to be above threat-safe, strong and prepared.
Applications: Where Security Can’t Be Compromised
