Palisade Fencing – Advanced Security for Varied Applications

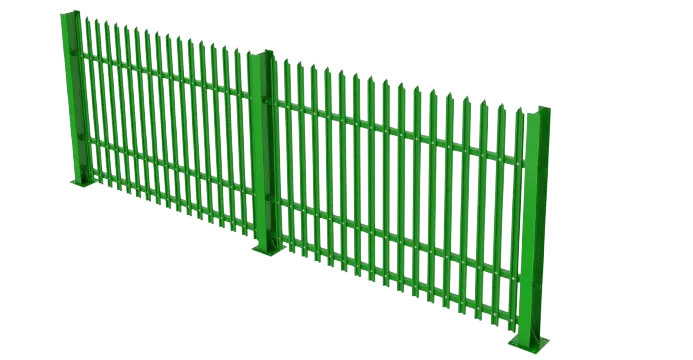

Palisade Fencing

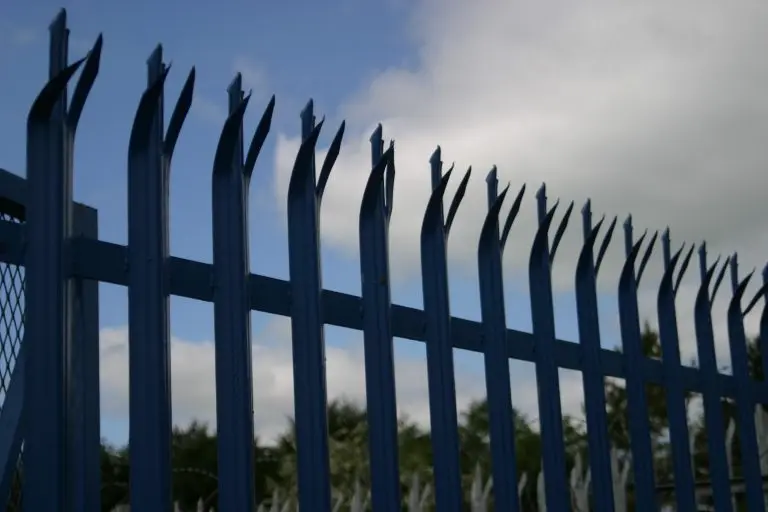

Palisade fencing stands out as a preferred choice for robust security solutions, distinguished by its intimidating design, electrification options, and exceptional durability. Featuring a smooth surface, sturdy construction, sharp spikes, and minimal gaps, this fencing style effectively deters climbing, straddling, and foothold attempts, enhancing security measures.
Available Types
Key Features
- Anti-climb design.
- Complies with BS EN 1722-12 standards.
- Vertical pale spacing adheres to anti-luring building guidelines.
- Various post options: over-length, base plated, or cranked for suitable fixation.
- Customizable post tops for barbed wire, razor wire, electric fencing, or CCTV camera mounting.
- Panels can be racked or stepped to accommodate sloping terrain.
- Adaptable to any landscape.
- Highly durable and suitable for a wide range of applications, from decorative to highly secure installations.
Hi Defensive Palisade Fencing System Components
Posts
Post Options: Available in 102mm x 44mm RSJ section or 127mm x 76mm universal beams, with pitch choices of 2750mm or 3000mm center-to-center. Installation Options:
- Extended length for embedding in the ground
- Base plate for bolting onto concrete
- Cranked to accommodate wall mounting.

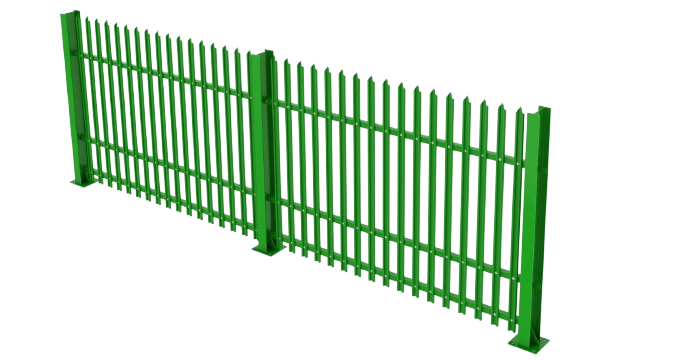

Panels:
- Our panels reach heights up to 3000mm, featuring vertical pales made from 2mm thick MS sheet forming either 'W' or 'D' shapes. These pales are securely attached to two RSA Rails (50x50x2mm) positioned at the top and bottom.
- Maintaining a strategic 152mm gap between pales effectively prevents climbing and breaches.
- Panels are easily bolted and connected to posts using the horizontal rail system.

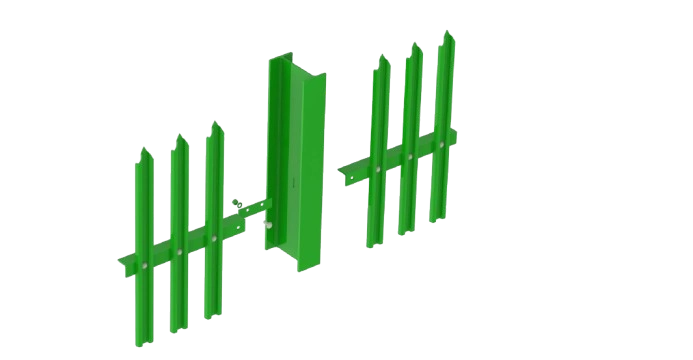

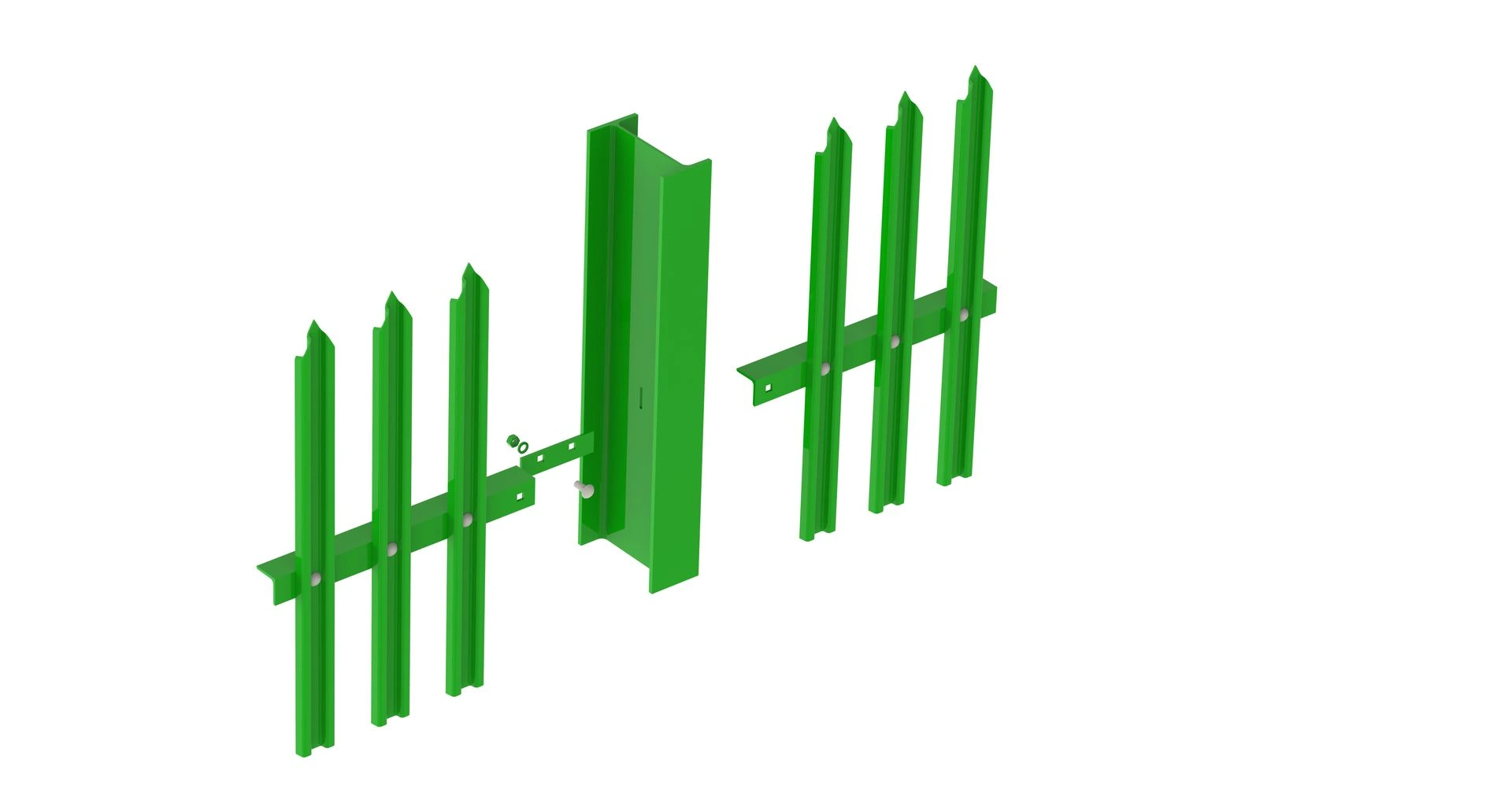

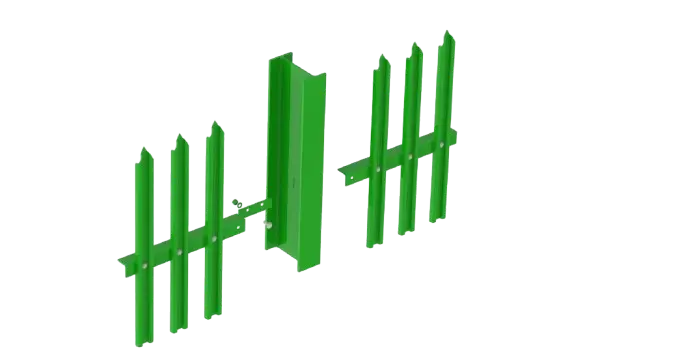

Fittings
- Pales are connected to two horizontal rails via bolt connections to form a cohesive panel.
- Each panel's stability is enhanced by a 40x5x150mm loose fish plate that runs through the post.
- Post security is ensured through either embedding in concrete or using a custom-sized welded base plate (250x250x10 mm).
Gates
For Swing Gates: Offer a wide 180° opening angle, equipped with tamper-proof hinges. Constructed from 50x50x4 mm angle iron, gate frames incorporate rails and pales akin to our fences.
- Single Leaf Gates (Sliding or Swing) typically sized at 3000 x 6000 mm (maximum).
- Double Leaf Gates (Sliding or Swing) typically sized at 3000 x 12000 mm (maximum).
- Single gates designed for right-hand installation, opening inwards, complete with key lock, handles, and gate stop.
- Double gates include key lock, handles, center gate stop, and drop bolts for secure closure
Dimensions
Item Code | Fence Height | Pale Height | Pale Section | Post Size | Horiz. Rail | Top Slot | Top Hole | Bottom Slot | Bottom Hole |
HIPLS100 | 1.00m | 9.50m | 2mm W / 3mm D | 102x 44mm | 50x50x5mm | 225mm | 225mm | 800mm | 150mm |
HIPLS150 | 1.50m | 1.45m | 2mm W / 3mm D | 102x 44mm | 50x50x5mm | 225mm | 225mm | 1300mm | 150mm |
HIPLS200 | 2.00m | 1.95m | 2mm W / 3mm D | 102x 44mm | 50x50x5mm | 275mm | 275mm | 1750mm | 200mm |
HIPLS250 | 2.50m | 2.50m | 2mm W / 3mm D | 102x 44mm | 50x50x5mm | 275mm | 275mm | 1850mm | 200mm |
HIPLS275 | 2.75m | 2.70m | 2mm W / 3mm D | 127x 76mm | 50x50x5mm | 475mm | 475mm | 2320mm | 380mm |
HIPLS300 | 3.00m | 2.90m | 2mm W / 3mm D | 127x 76mm | 50x50x5mm | 475mm | 475mm | 2570mm | 380mm |
Standard Colors
|
Black |
RAL 9005 |
|
Green |
RAL 6005
|
Brown | RAL 8017 |
Green | RAL 6005 |
Grey | RAL 7012 |
|
Custom |
custom colors are available upon request.
|
Applications of Palisade Fencing System
Installation Services
At HITECH Fencing, we offer full support throughout your project, providing custom Palisade Fencing solutions and expert installation services. Installing security fencing, from small to large projects, presents unique challenges. Our team of experienced fencing professionals is committed to guiding you, offering advice, and managing the installation process to ensure you receive effective security enhancements efficiently. We prioritize your satisfaction and safety above all else.
