Saudi Aramco Type 3 Fence: High-Security Fencing
Aramco Type 3 Fence
Dive into the specifics of Hitech’s Saudi Aramco Type 3 Fence, meticulously engineered to meet the rigorous demands of high-security environments. This fence is constructed for zones where robust security measures are paramount, providing comprehensive protection for a wide array of facilities, from industrial complexes to high-risk commercial sites.
The ARAMCO Standard Chain Link Fencing System is designed to provide robust security and clear boundary delineation for various facilities. This comprehensive system ensures quality, durability, and effective protection across industrial and commercial applications. Below is a short overview of its key components and standards.
Available Types
Why Choose Saudi Aramco Type 3 Fence from Hitech?
Efficient Protection
Superior Security Enhanced Durability Strict Compliance Delivers exceptional security features designed to thwart advanced threats and unauthorized entries
High-Quality Construction
Crafted using top-grade materials that ensure long-lasting resilience against physical and environmental challenges
Fully Compliant
Adheres to all Saudi Aramco regulations for high-security fencing, offering a compliant and dependable solution.
Detailed Features of Saudi Aramco Type 3 Fence
Chain Link Fabrics
Our chain link fabric meets ASTM A392 standards, featuring a 50 mm mesh size that provides solid coverage while maintaining visibility. The fabrics are finished with barbed edges for additional security, deterring and complicating any intrusion attempts.
Wire Enhancements
Tension Wire
Constructed to meet ASTM A641/A641M, Class III, our tension wire is zinc-coated, boasting a heavy galvanization that resists rust and degradation, enhancing fence integrity under tension
Stirrup Wire
Crucial for distributing stress and fortifying the mesh connection to posts, our stirrup wires are integral to maintaining fence shape and resilience under physical stress
Tie Wire
Galvanized to match the chain link fabric, our tie wires secure the fabric to the posts, ensuring the fence remains intact even under duress. These are critical for maintaining the system’s overall structural integrity
Barbed Wire
Double-stranded and heavy-gauged, our barbed wire meets ASTM A121 standards, designed to provide an additional layer of security, making climbing or breach attempts more challenging
Posts and Fittings

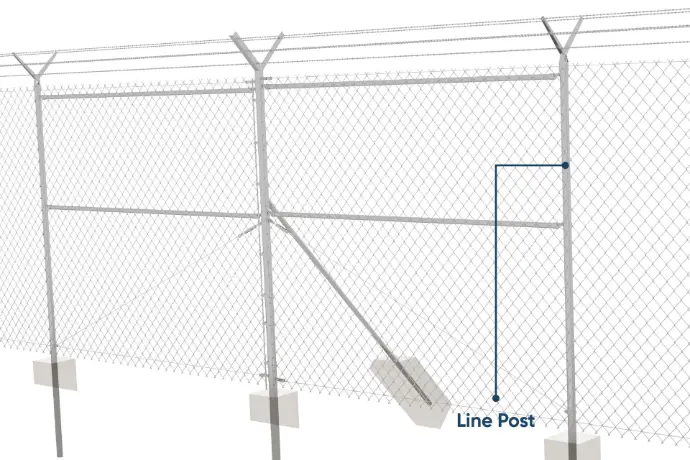

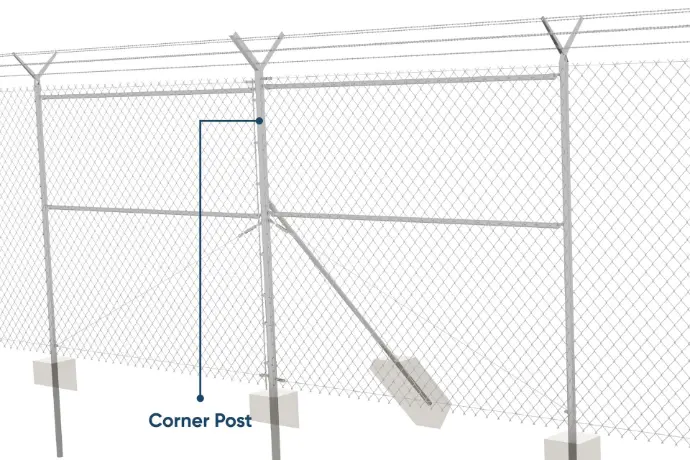

Line Posts and Corner/End Posts
Our posts are constructed from galvanized steel, complying with ASTM A-53 Sch.40, known for their strength and resistance to corrosion, ensuring they stand firm against environmental and physical pressures

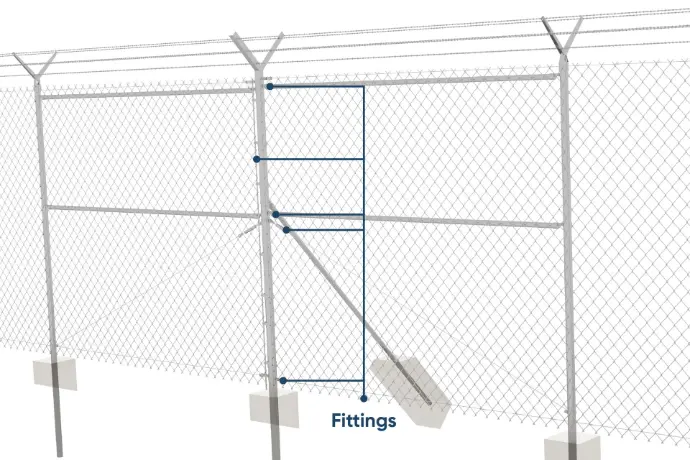

Fittings
Every fitting used, from extension arms to nuts and bolts, is manufactured to meet ASTM F626 standards, ensuring every component contributes to the overall strength and durability of the fence
Features
- High Security: Provides robust protection against unauthorized access and intrusion.
- Durable Materials: Constructed with galvanized steel for strength and longevity.
- Variety of Posts: Includes strainer, corner, end, and line posts for diverse structural needs.
- Continuous Top Rail: Enhances fence stability and distributes forces evenly.
- Galvanized Fittings: All fittings, such as extension arms, bands, bolts, and nuts, are hot-dipped for durability.
- Compliance: Meets ASTM A-123 and A-153 standards for galvanization.
Fencing System Specifications
Above Ground Height | 2.7m |
Mesh Size | 50x50 mm |
Wire Diameter | 3.76 mm |
Chain Link Fabric Height | 2400mm |
Extension Arm Height from Fabric | 300mm |
Strainer Post Placement | Every 90m |
Back Support | 3000mm Long, 42.4mm Dia, 3.56mm Thickness, placed every 90m |
Continuous Top Rail | 6000mm Long, 42.4mm Dia, 3.56mm Thickness, placed every 6m |
Post Embedded in Foundation | 975 mm |
Finishes
- ACCORDANCE WITH ASTM A-123
- ACCORDANCE WITH ASTM A-153
Standard Colours
- Green Color RAL 6005
- Customization of different color is available
Post & Pipes Dimensions:
Item | Length (mm) | Pipe Dia (mm) | Thickness (mm) | Weight (Kg/m) |
Line Post | 3400 | 60.3 | 3.91 | 5.44 |
Corner/Strainer & End Post | 3400 | 73 | 5.16 | 8.65 |
Brace Rail | 3400 | 42.2 | 3.56 | 3.39 |
Wire Products Specifications
Class | Chain Link Fabrics | Tension Wire | Stirrup Wire | Tire Wire | Barbed wire |
Opening/Wire Dia | 50/3.76 | 4.5 (2 Rows) | 3 | N/A | 2.50 mm Dia, 6 rows |
Diverse Applications
Installation Excellence
At HITECH Fence, we are your dedicated partners every step of the way. Our commitment goes beyond mere manufacturing and designing of ARAMCO fencing systems to perfectly suit your needs. We prioritize delivering exceptional customer service to guarantee your utmost satisfaction.
From the initial phases of your project to its successful completion, count on us for comprehensive support. We manage everything from manufacturing and customizing ARAMCO fencing solutions to expert installation. Whether your project involves large-scale perimeter security or smaller enclosed areas, we understand the challenges involved. Our team of seasoned professionals is readily available to navigate you through the process and handle all intricate details. Our ultimate aim is to ensure you swiftly reap the benefits of a safe and secure ARMACO fencing system tailored to your exact specifications.
