SAIS Class 2 Fence: Higher Security Fence
SAIS also known as HCIS
Class 2 Welded Mesh Fence
The SAIS Class 2 fence gives unparalleled security that is competent in meeting the strict requirements of the High Commission of the Industrial Security (SAIS) in Saudi Arabia. It is the panacea of the solutions to reinforce sensitive places and industrial sites that demand tight and high-security areas. The SAIS Class 2 fence is a very secured fence and its advanced system offers the optimum security to sensitive areas that cannot be compromised.
SAIS Class 2 Fence System | Hitech’s Top-notch Fence
Optimal Security
These fences are engineered to provide security perimeters to high-level areas. HCIS Class 2 fencing is a formidable fence.
Durability and Resistance
Constructed with galvanized steel and coupled with PVC coating, these fences ensure optimal performance and durability against conditions.
Regulatory Compliance
These fences are in compliance with HCIS standards. It ensures the security needs of industrial sectors are met in Saudi Arabia.
Our product name has officially changed! HCIS is now SAIS.
We are continuing to deliver the trusted quality you know.
SAIS Class 2 Fence System | Major Elements

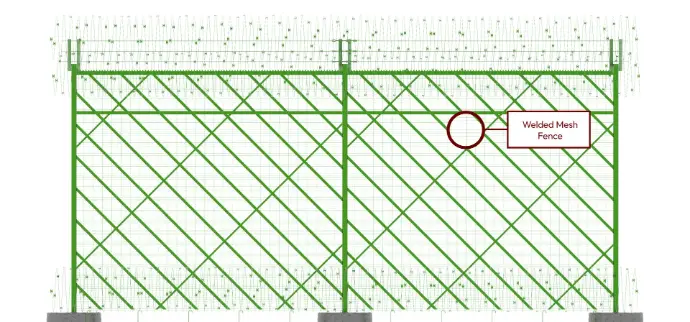

Welded Mesh Fence
The mesh size of the weld mesh panel is 76.2 +3.2 mm x 12.7mm +1.60mm as required by the ASTM F 2453, which is very high performance security design. The wire is strong and of diameter 3mm both on the vertical and horizontal wires. The tensile strength of the panel satisfies the requirement of ASTM A 641 that gives a good performance of the panel. Its height is 2755.90mm and width 3055.60mm. The finish finishes of zinc is ASTM A641, Class-3 and the Dark Green RAL 6005, 350 microns.

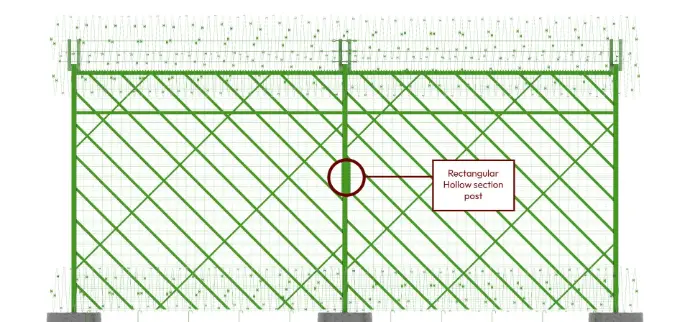

Rectangular hollow section post
The post is a rectangular hollow section having 120mm x 60mm dimensions, and the minimum wall thickness of 2.75mm. The post is 3555mm in length (2805mm above the ground level with 750mm of the post submerged in the ground) to ensure it is safely installed. It is zinc coated according to ASTM A123 standards which gives it very high corrosion resistant properties. Also the post has 350-Micron thick thermoplastic coating of P 26 Green RAL 6005, which provides durability and long life in severe outdoor environment.

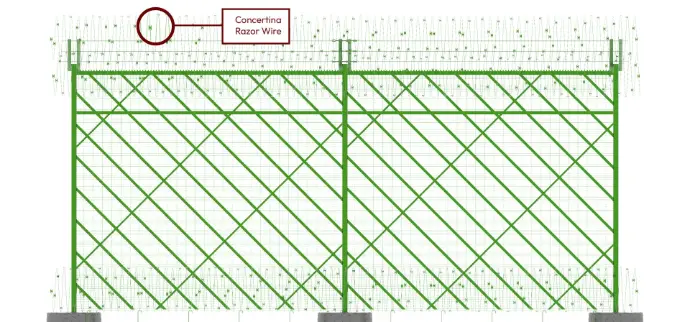

Concertina Razor Wire
SAIS Class 2 has 3 rows of concertina razor wire to make it the most effective deterrent. The concertina razor wire is crafted out of stainless steel SS304, blade length is 30mm ( +/- 1mm) and the thickness is 0.50mm ( +/- 0.10mm). It will have a 600mm stretch and diameter before giving safe deterrence. The wire contains 55 loops on a coil and the spacing of the blades is 78mm with a minimum tensile strength of 1250 N/mm 2. It has a 259 GSM galvanized coating against corrosion.

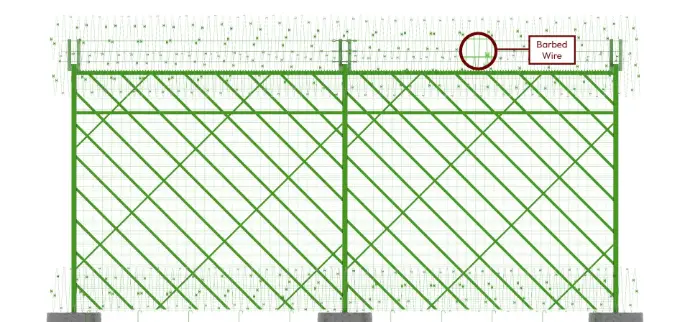

Barb Wire ASTM A121 Compliant
The barb wire in the SAIS fencing system is in line with the ASTM A121 standard, and the diameter of the wire is 2.00mm. Both line and barbed wires have tensile strength of 400 N/mm 2 which makes them resistant and durable. Its pitch is 125mm, and line is covered by 244 grams of zinc each meter and barbed wire by 214 grams each meter. It has 3 rows to ensure maximum security.

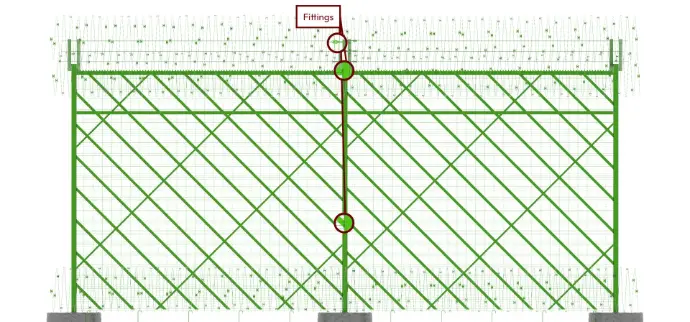

Fittings
The type 2 uses an entirely corrosion-resistant package of fittings to fix the panel-to-post bond and carry the topmost security elements. Post ends are waterproofed with PVC post caps and profile cover plates (2.90 mm x 2756 mm) are used to offer some form of protection against tampering with 120 GSM of zinc and 350-micron of TPC in RAL 6005. ASTM A123 J-hooks is used (40 × 40 × 4 mm, 550 mm) to install barbed/razor wire properly with the help of wall spikes ( 1.80 mm, 120 GSM + 350-micron RAL 6005) and ASTM C A123 J-hooks (8 mm rod, 400 mm) which must fix barbed/razor wire and guarantee its durability.
SAIS Class 2 Welded Mesh Fence | Key Features
High-Level Security
Provides strong protection against intrusion, tampering, and physical breaches.
Galvanized Steel Structure
Built using high-strength galvanized steel for structural reliability and long-term performance.
PVC Coating
Resists corrosion and enhances the aesthetic appearance of the fence.
Post Variety
Includes strainer, corner, end, and line posts to fit various fence layouts and requirements.
ASTM Compliance
Meets ASTM A-123 and ASTM A-153 standards for galvanization quality and coating thickness.
Galvanized Fittings
Extension arms, bolts, nuts, and bands are hot-dip galvanized for maximum durability.
Contact Us
Protect your assets with Hitech Fence’s . For consultations, demonstrations, or inquiries:
Empower your infrastructure to be above threat-safe, strong and prepared.
