Welded Mesh Fence Secure 476 – Advanced Security Mesh System

Why Choose Our Welded Mesh Fence Secure476?

The Hi Secure 476 presents an advanced welded mesh fencing system, tailored for high-security applications. Featuring 4mm thick wires and compact 76.2x12.5mm mesh gaps, this fence is engineered to deter unauthorized access, making it perfect for protecting sensitive areas.

Contact Us

Welded Mesh Fence Secure476

Features


Mesh Size

76.2x12.5mm

Wire Diameter

 4mm or 5mm Dia Vertical and Horizontal Wires

Material

Galvanized steel

Post Dimensions

40 x 40mm, 60 x 60mm, or 50 x 100mm depending on fence height

Standard Panel Width

2500 mm

Panel Heights

950 mm, 1450 mm, 1950 mm (stackable up to 6000 mm)

Tensile Strength

Min. 500 N/mm²

Welding Strength

50% of total tensile strength in accordance with EN 10223-7

Panel WidthS

2500 mm

Post Dimensions

50 x 50 mm (up to 1.5m high)

60 x 60 mm SHS (up to 3000 mm)

50 x 100 mm RHS (up to 6000 mm)

Post Centers

2510 mm

Key Components of Hi Secure 476 Components

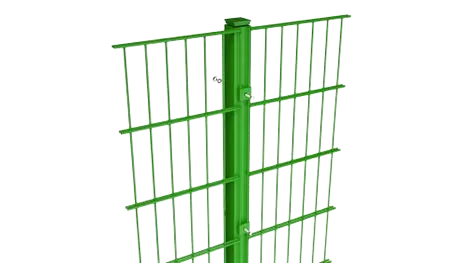

Welded Mesh Fence Secure476 post

Posts

Hi Secure 476 is designed to secure properties of varying scales, with its name in-spired by its hollow steel posts. These posts come in measurements of 50x50mm, 60x60mm, or 50x100mm, depending on the fence's height, providing the necessary strength to withstand pressure and force. The posts determine the fence's length and offer several mounting options:

  • Over-length set in the ground
  • Base plated for bolting onto concrete
  • Cranked for wall mounting
  • Covered with a plastic cap on top
  • Extended with a 45-degree crank on top
  • Extended with a double (Y) crank on top



Panels:

The mesh between the posts is known as a panel. These wire mesh panels are 2500mm wide, made with 4mm/5mm vertical and horizontal wires welded together, forming rectangular openings of 76.2x12.5mm with a special 2D profile for additional reinforcement. The standard panel heights are 950mm, 1450mm, and 1950mm, and can be stacked to create a fence up to 6000mm high.

To enhance security and prevent climbing, options include:

  • 30mm projecting spikes
  • 3 or 6 barbed wires
  • 3 or 6 barbed wires with a concertina role

The tensile strength of the wires is a minimum of 500 N/mm², with the welding strength at least 50% of the total tensile strength of the wire, in compliance with EN 10223-7.

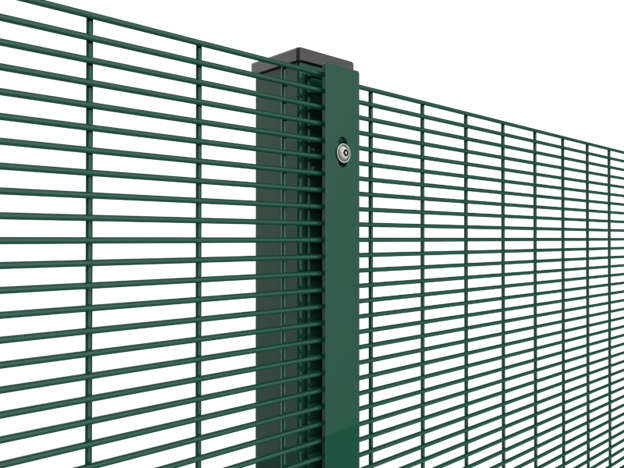

Welded Mesh Fence Secure476 pannel
fittings

Fittings

The system uses rigid 40x50mm metal clips or 50x5mm flat bars along the full length of the post to secure the welded steel mesh panels. These fittings are bolted every 400mm using 8mm diameter round head bolts.

Gates

 Matching single leaf and double leaf gates are available for the Hi Secure 476 fenc-ing system. These gates come with a variety of opening mechanisms and can be man-ually or automatically operated.

Welded Mesh Fence Secure476 gates

Finishing Options

Hot-Dip Galvanizing

All steel components shall be hot-dip galvanized in accordance with BS EN ISO 1461 to ensure superior corrosion protection and extended service life.

Powder Coating

For enhanced durability and aesthetic finish, components shall comply with BS EN 13438, involving hot-dip galvanizing followed by a high-quality powder coating process.

Marine-Grade Protection

For installations within 500 meters of saltwater or estuaries, a specialized marine-grade coating system shall be applied to provide robust resistance against salt-induced corrosion.

Standard Colors

Black

RAL 9005

Green

RAL 6005

Custom

custom colors are available upon request.

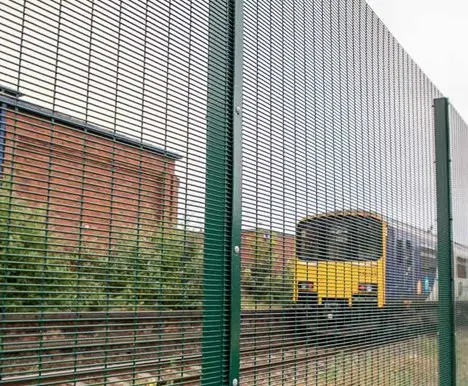

Applications of Hi secure 476


Customization and Installation

HiTECH Fence supports a fully customizable installation process to align perfectly with client specifications. From the initial design phase through installation, our team provides end-to-end support, ensuring a seamless setup tailored to your site’s contours and specific security needs.
