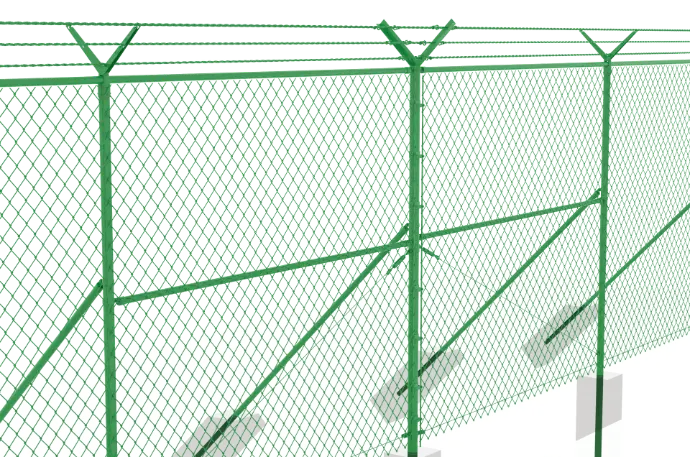

Saudi Aramco Type 2 Fence: Advanced Security for Medium Risk Areas
Aramco Type 2 Fence

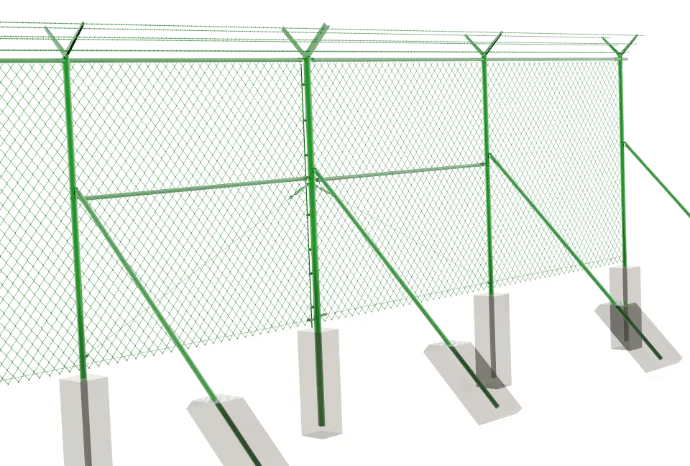

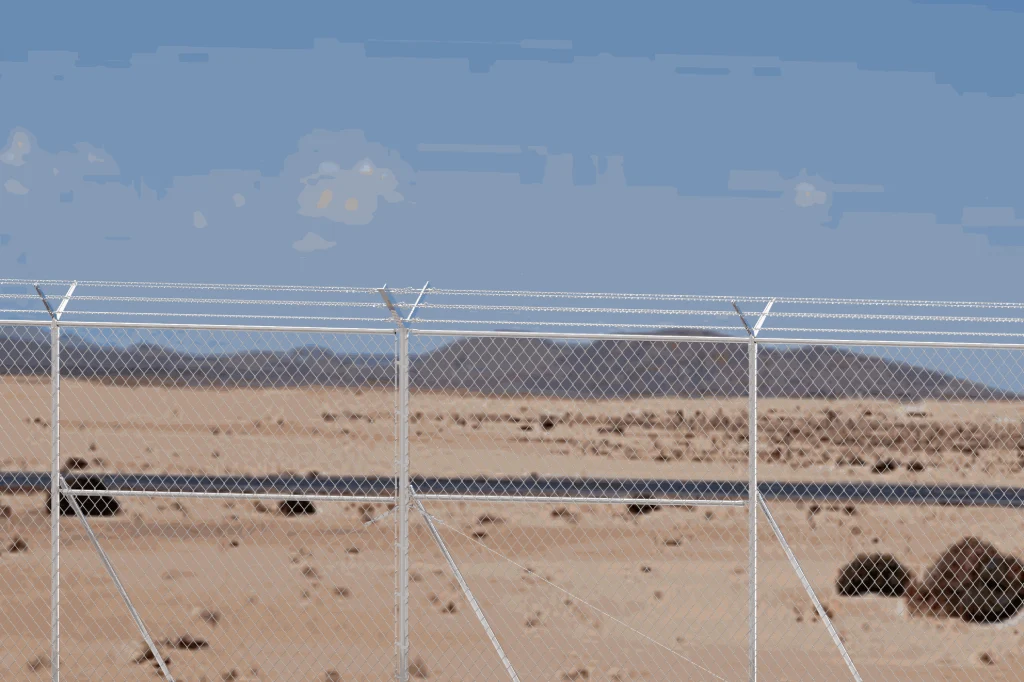

Explore HiTech’s Saudi Aramco Type 2 Fence, an integral part of our specialized fencing solutions developed to meet Saudi Aramco's specific requirements. This fencing option is tailored for medium-security applications, providing enhanced protection and clear boundary delineation across various operational contexts including industrial and commercial facilities.
Available Types
Why Opt for Saudi Aramco Type 2 Fence from Hitech?
Enhanced Security Features
Offers a higher level of protection ideal for safeguarding areas of medium risk.
Robust Construction
Crafted with premium materials that ensure long-lasting durability and withstand environmental pressures.
Compliance Assurance
Meets all specifications set forth by Saudi Aramco, guaranteeing a compliant and reliable fencing solution.
Detailed Specifications of Saudi Aramco Type 2 Fence
Chain Link Fabrics
The chain link fabric must feature a diamond mesh pattern with a 50 mm (±3.2 mm) opening, complying with ASTM A392 standards. The height should be 2400 mm (±12 mm), providing adequate coverage for security needs. The fabric's top and bottom edges should be machine-twisted, creating a barbed finish by cutting the wire at an angle. Standard rolls are 15 meters in length and must be woven continuously without any splices, ensuring uniform strength and durability throughout the roll.
Wire Enhancements
Tension Wire
The zinc-coated tension wire used in chain link fencing must adhere to ASTM A641/A641M, Class III standards. This wire should have a galvanized coating of at least 244 g/m² (0.80 oz/ft²) of surface area, ensuring excellent corrosion resistance and durability. The wire should have a nominal diameter of at least 4.5 mm and possess a minimum breaking strength of 6230 N (1400 lb), providing the necessary tensile strength to maintain the structural integrity and security of the fence.
Stirrup Wire
Stirrup wire provides additional support and attachment points, often connecting the vertical posts to the mesh or chain-link fabric. It reinforces the fence at points of high stress, distributing loads and pressures evenly across the structure. This helps the fence resist deformation and damage from external forces, enhancing its durability and security.
Tie wire
Tie wire is used to secure the mesh or chain-link fabric to the tension wire and posts. It wraps around the fabric and the tension wire or posts, holding the fabric firmly in place. The tie wire for chain link fencing must be galvanized according to ASTM A641/A641M standards, with a coating of at least 244 g/m² (0.80 oz/ft²) of surface area to match the fence fabric. This ensures strong resistance to corrosion and environmental wear. The wire should have a nominal diameter of at least 3.0 mm and a length of 250 mm (±10 mm), providing reliable fastening and maintaining the integrity of the fencing system.
Barbed Wire
Barbed wire for chain link fencing must consist of two twisted strands of galvanized steel, each with a nominal diameter of no less than 2.5 mm. Four barbs, each with a nominal diameter of at least 2 mm, should be spaced 125 mm (±20 mm) apart and wrapped to interlock with both main strands for enhanced security. The galvanized steel barbed wire must comply with ASTM A121 standards, ensuring high durability and resistance to corrosion.
Posts and Fittings

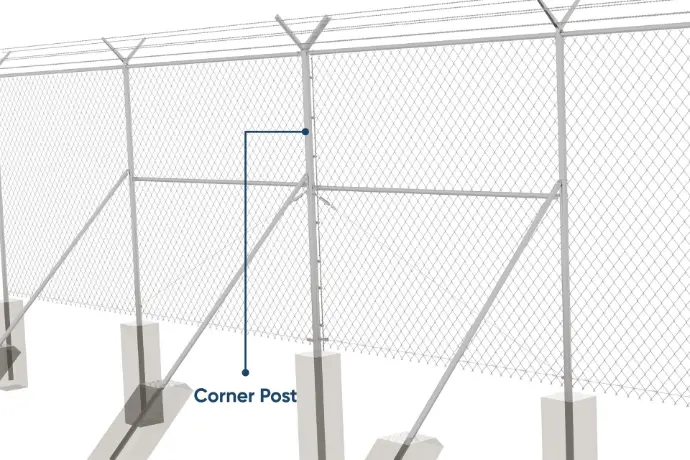

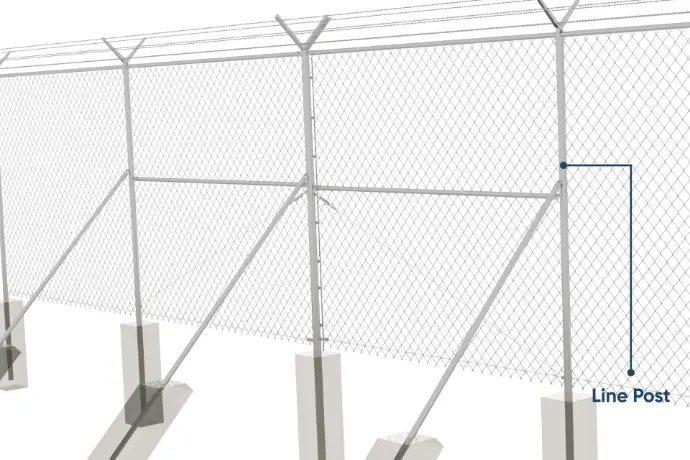

Line and Corner Posts
Made from galvanized steel, these posts support the structural integrity and alignment of the fence. Adhering to ASTM A-53 Sch.40 standards, they provide necessary support and are equipped with caps to prevent water ingress.

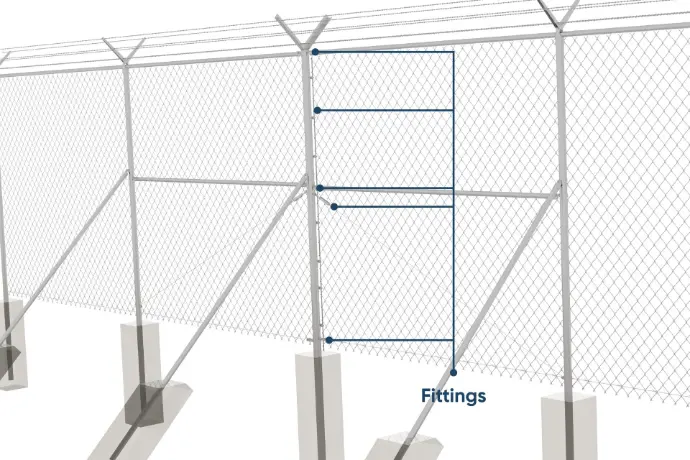

Fittings
All fittings, including extension arms, bands, and bolts, comply with ASTM F626, ensuring durability and a perfect fit.
Features
- High Security: Provides robust protection against unauthorized access and intrusion.
- Durable Materials: Constructed with galvanized steel for strength and longevity.
- Variety of Posts: Includes strainer, corner, end, and line posts for diverse structural needs.
- Continuous Top Rail: Enhances fence stability and distributes forces evenly.
- Galvanized Fittings: All fittings, such as extension arms, bands, bolts, and nuts, are hot-dipped for durability.
- Compliance: Meets ASTM A-123 and A-153 standards for galvanization.
Fencing System Specifications
Post & Pipes Dimensions | ||||
| Item | Length (mm) | Pipe Dia (mm) | Thickness (mm) | Weight (Kg/m) |
| Line Post | 3400 | 60.3 | 3.91 | 5.44 |
| Corner/Strainer & End Post | 3400 | 73 | 5.16 | 8.65 |
| Brace Rail | 3000 | 42.2 | 3.56 | 3.39 |
Top Rail | 6000 | 42.2 | 3.56 | 3.39 |
Finishes
- ACCORDANCE WITH ASTM A-123
- ACCORDANCE WITH ASTM A-153
Standard Colours
- Green Color RAL 6005
- Customization of different color is available
Wire Products Specifications
Class | Chain Link Fabrics | Tension Wire | Stirrup Wire | Tire Wire | Barbed wire | ||||
Specifications |
| 4.5, 1 Rows | 3.0 | 2.5 | 2.50, 6 rows |
Diverse Applications
Installation Excellence
At HITECH Fence, we are your dedicated partners every step of the way. Our commitment goes beyond mere manufacturing and designing of ARAMCO fencing systems to perfectly suit your needs. We prioritize delivering exceptional customer service to guarantee your utmost satisfaction.
From the initial phases of your project to its successful completion, count on us for comprehensive support. We manage everything from manufacturing and customizing ARAMCO fencing solutions to expert installation. Whether your project involves large-scale perimeter security or smaller enclosed areas, we understand the challenges involved. Our team of seasoned professionals is readily available to navigate you through the process and handle all intricate details. Our ultimate aim is to ensure you swiftly reap the benefits of a safe and secure ARMACO fencing system tailored to your exact specifications.
