Anti Climb Fence: Hi-Defensive Barbed Top Fencing System

Posts

Our fencing posts, constructed from 60x60mm rectangular hollow sections with a durable 2mm thickness, incorporate an integrated small pale and a 10mm welded spike. The posts' height can be adjusted based on the consumer's fitting preferences. There are few fiting options given below.

• Over-length set in the ground
• Base plated to bolt down onto the concrete
• Cranked to suit wall mounting.

Panels

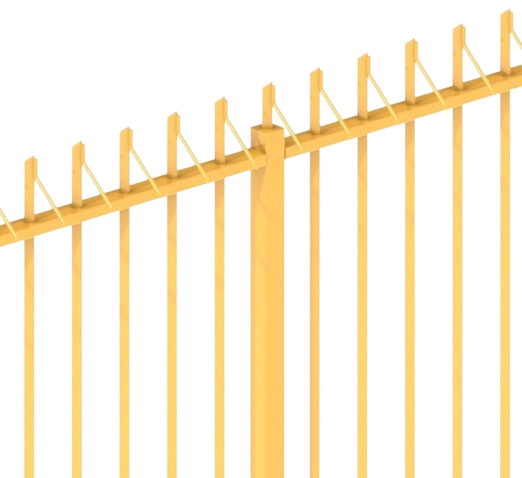

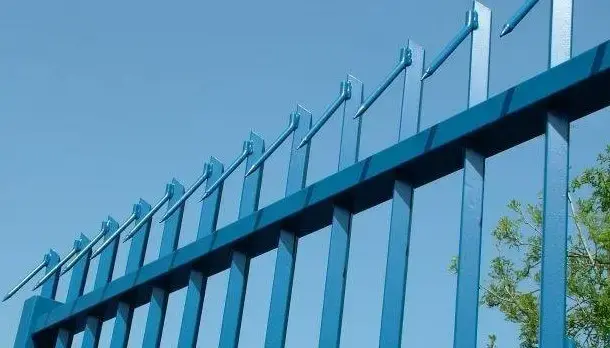

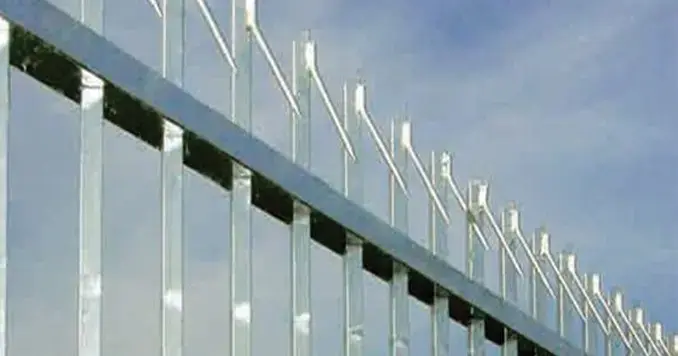

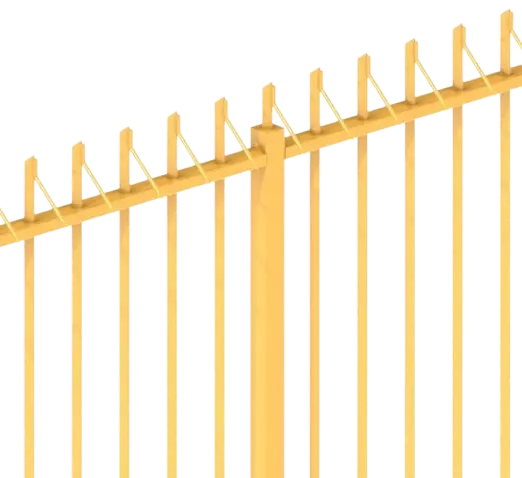

Presenting our fencing panel with total width of 3000mm: vertical square hollow section pales (25x2mm) reinforced by two 60x30x2mm horizontal rails (three for 3000mm height). Optimal positioning includes a lower rail 150mm above ground, upper rail 175mm below the tip. Pales are 140mm apart, with 122mm post-to-pale center distance. Enhanced security features include 10mm diameter bar welded to each pale, angled at 45 degrees towards the ground for extra area protection.

Fittings

Joints between pales and rails, as well as panels and posts, are exclusively welded, eschewing traditional nut-bolt assemblies. This meticulous welding ensures an impervious connection, preventing any unauthorized removal. Furthermore, when it comes to post installation, clients have two options: ground placement or securement via a150x150mm base plate with a robust 10mm thickness. Your fencing's strength and resilience are assured through our unyielding commitment to craftsmanship.
