Welded Mesh Fence 3D Extra – Ultimate Security and Durability


Welded Mesh Fence 3D Extra

Welded Mesh Fence 3D Extra represents an advanced fencing product built to deliver superior security with extended lifespan. Its 3D structure integrates V-shaped supports which enhance strength as well as preserve visual appeal. This fence product uses high-quality galvanized steel combined with protective powder coating to resist both corrosion and rust and harsh weather. The high-security mesh fence serves all property types including homes and businesses and industries due to its stylish appearance and strong safety features. The low-maintenance system installs easily thus providing suitable security solutions that match any building design.

Contact us

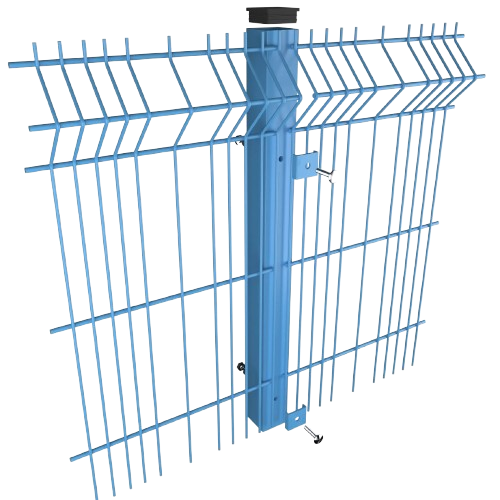

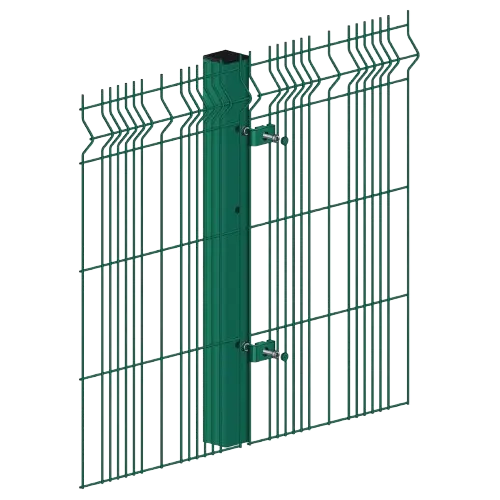

Welded 3D fence

Key Features of Welded Mesh Fence 3D Extra


Mesh SizeTwo sections of 200 x 50 mm and five sections of 200 x 25 mm
Wire Diameter4 mm vertical and 6 mm horizontal wire
MaterialGalvanized steel
Standard Panel Width2500 mm, customizable
Panel Heights950 mm, 1450 mm, 1950 mm (stackable up to 6000 mm)
Tensile StrengthMin. 500 N/mm²
Welding Strength50% of total tensile strength (EN 10223-7)
Post Dimensions50 x 50 mm (up to 1.5 m), 60 x 60 mm SHS (up to 3000 mm), 50 x 100 mm RHS (up to 6000 mm)
Post Centers2510 mm
ColorsRAL 9005 Black, RAL 6005 Green, customizable
Mesh Size
Two sections of 200 x 50 mm and five sections of 200 x 25 mm
Wire Diameter
4 mm vertical and 6 mm horizontal wire
Material
Galvanized steel
Standard Panel Width
2500 mm, customizable
Panel Heights
950 mm, 1450 mm, 1950 mm (stackable up to 6000 mm)
Tensile Strength
Min. 500 N/mm²
Welding Strength
50% of total tensile strength (EN 10223-7)
Post Dimensions
50 x 50 mm (up to 1.5 m), 60 x 60 mm SHS (up to 3000 mm), 50 x 100 mm RHS (up to 6000 mm)
Post Centers
2510 mm
Colors
RAL 9005 Black, RAL 6005 Green, customizable

Components of Welded Mesh Fence 3D Extra

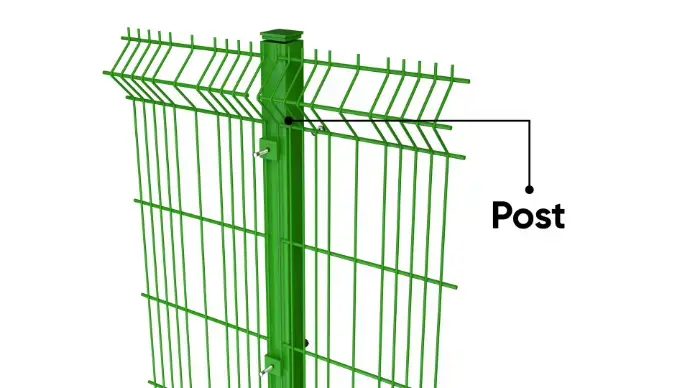

Welded Mesh Fence post

Posts

Manufacturers have designed the Welded Mesh Fence 3D Extra posts to deliver enhanced stability with increased security features. The fence's dependable structure includes features against climbing attempts and boosts the entire fence's structural stability. Made to resist corrosion and designed for extended service life these posts combine secure stability with attractive appearance thus making them suitable for diverse locations. This post comes with various mounting options as:

  • Over-length set in the ground
  • Base plated for bolting onto concrete
  • Cranked for wall mounting
  • Covered with a plastic cap on top
  • Extended with a 45-degree crank on top
  • Extended with a double (Y) crank on top


Panels

The security barrier consists of 2500mm wide panels made from 4mm vertical wires and 6mm horizontal wires that form rectangular openings. A special 3D profile feature on the panels provides security benefits and decorative striped aesthetics to fences. Our security panels come in elevated dimensions of up to 1950mm and they allow stacking until they reach heights of 6000mm while providing optional spike and barbed wire protection

Welded Mesh Fence panel

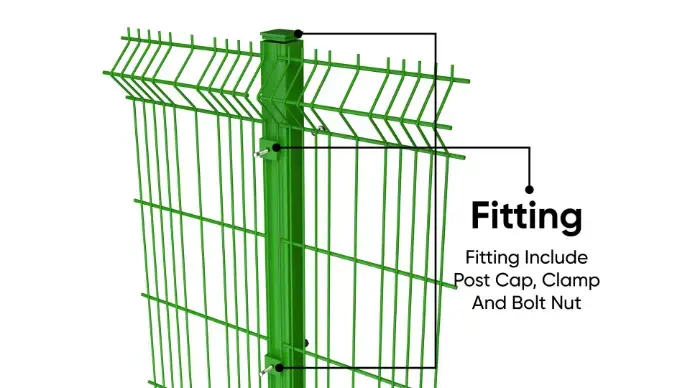

fitting

Fittings

  The fence stability depends on 40x50mm metal clips or 50x5mm flat bars which serve to connect panels to posts through 8mm diameter bolted installation at 400mm intervals. This installation remains sturdy because the fittings receive bolted connections at 400mm spacing points using 8mm diameter bolts to achieve security.

Gates

Complementing the fencing system, our range includes both single and double leaf gates that can be customized with manual or automatic operating mechanisms. These gates are designed to match the security and design standards of the HiWeld 3D Extra system, providing cohesive perimeter security

gates

Finishing Options

Hot-Dip Galvanizing

All steel parts need hot-dip galvanization implementation from BS EN ISO 1461 for outstanding corrosion defence and protracted operational duration.

Powder Coating

The product requirements under BS EN 13438 call for hot-dip galvanizing before applying high-quality powder coatings to achieve durability and aesthetics.

Marine-Grade Protection

When installations are located within 500 meters of saltwater or estuarine a specialized marine-grade coating system should be used to protect against salt-induced corrosion.

Standard Colors

Black

RAL 9005

Green

RAL 6005

Custom

custom colors are available upon request.

Applications of HiWeld 3D Extra


Installation Process

Hitech Fence stays available to help from the start to the finish of your experience using the Welded Mesh Fence 3D Extra. The company extends its manufacturing design expertise to create V Mesh fencing products which fulfil specific customer requirements. The team at our organization holds a dedication to always giving superb service with the goal to achieve your full satisfaction.

Hitech Fence provides complete assistance during the entire process starting at the beginning of your project until the completion date. The company will both produce and design the Welded Mesh Fence 3D Extra system and provide installation services. The implementation of a fencing system faces installation hurdles irrespective of the size of the project. Our team stands ready to assist you through entire project cycles where they will manage complicated tasks. We aim to deploy the Welded Mesh Fence 3D Extra safety and security advantages promptly to all our clients.
