Hitech Electric Gates: Revolutionizing Access Control
Electric Gate
Hitech's Electric Gates are the epitome of security and convenience, seamlessly integrating with various fencing systems such as chain link, welded mesh, steel, and high-security chain link fences (HCIS). Designed to cater to both swing and sliding gate types, these gates come equipped with single-phase or three-phase motors tailored to meet specific operational requirements and site conditions. Ideal for sites demanding frequent access, these motorized gates combine robust security with the ease of automation, making them perfect for industrial, commercial, and high-security areas.
Available Types
Why Choose Hitech’s Electric Gates
Cost-Effective
Economical without compromising on functionality
Easy to Install
Designed for hassle-free installation
Adjustable Assembly
Can be customized to fit various site specifications
Types of Electric Gates
Motorized Swing Gate
Available in both single and double leaf configurations, motorized swing gates open inward or outward using a motorized arm mechanism. These gates are ideal for pedestrian or vehicular access, offering automated convenience. The gate motor can be configured to work with either a single-phase motor for residential or light commercial applications or a three-phase motor for heavier industrial use where higher power output is needed.

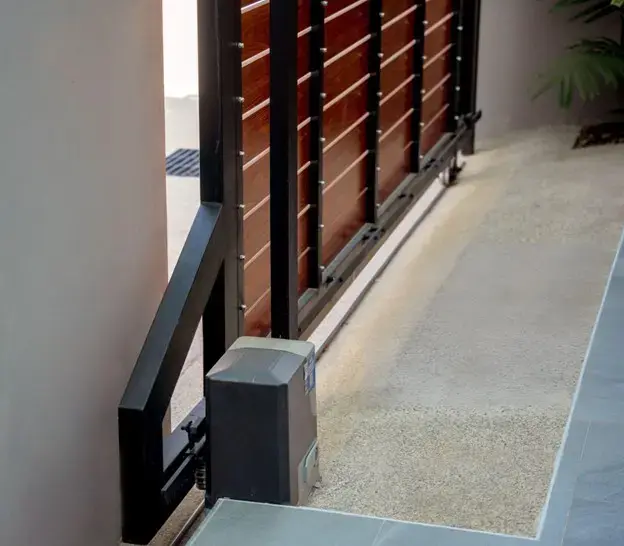

Motorized Sliding Gate
Motorized sliding gates are designed to open horizontally along a track, providing a space-saving solution where swing gates are impractical. Available in single or double sliding configurations, these gates use motorized rollers to open and close automatically. The motor choice—single-phase or three-phase—depends on the size and weight of the gate, as well as the frequency of use. Single-phase motors are ideal for smaller gates or light traffic, while three-phase motors are better suited for industrial settings with heavier loads and continuous operation.
Dimensions
Sr No. | Name | Specifications |
1 | Single leaf swing gate | 1000mm wide - 1800mm Wide |
2 | Double leaf swing gate | 2000mm wide – according to customer requirements |
Structural Reinforcements
Bracing: To ensure the gates withstand daily use, particularly for larger configurations, internal bracing with truss rods (typically 10mm thick) is strategically incorporated to enhance the gate’s overall strength and prevent sagging.
Anti-Climb Feature: For additional security, an anti-climb de-sign is integrated with barbed wires at the top, often in a 300mm wide spacing to deter unauthorized access.
Drop Lock: For double swing gates, a drop lock system is employed, providing an extra layer of security by anchoring the gate when closed.
Detailed Components and Construction
|
Component |
Description |
|
Gate Posts |
Sturdy posts, often made of SCH 40 grade materials, anchor and support the sliding panel(s) ensuring smooth operation. |
Gate Frame | Constructed from high-strength materials like steel or aluminum to support mesh or solid panels. |
Infill | Customizable using mesh panels or solid materials like galvanized or PVC-coated steel wire, matching the security needs. |
Tracks and Rollers | Equipped with heavy-duty tracks and rollers that ensure effortless and reliable gate movement |
Locking Mechanism | Features robust locking systems, including options for manual or automatic operations |
Electrical Setup and Safety Compliance
Electrical connections for both single-phase and three-phase motors must be installed by certified electricians according to local safety standards. Three-phase motors, which are generally used for larger, more demanding gate operations, need robust wiring and a suitable power supply to function efficiently. Conversely, single-phase motors are simpler and more cost-effective for smaller gates or less frequent use, making them suitable for residential and light commercial settings.
Single-Phase Motor
Ideal for residential and light commercial use, these motors handle moderate traffic and lighter loads with efficiency. They are energy-efficient and can be easily connected to standard household power supplies.
Three-Phase Motor
These motors are tailored for heavy-duty commercial or industrial use, providing greater power and designed for continuous operation. Suited to larger gates and heavier loads, three-phase motors require a specialized electrical setup but are more efficient and reliable for high-demand situations.
Applications of Electric Sliding Gate
Installation Guidelines for Motorized Swing and Sliding Gates
Motorized gates, whether swing or sliding types, demand precise installation to ensure they operate smoothly and safely. Proper alignment with the motor and control system is crucial to prevent issues such as binding, misalignment, or undue wear. For sliding gates, it's essential that the track is installed on level ground and the motor is securely mounted to mitigate vibration during use. Swing gates, on the other hand, require the motor arm to be perfectly aligned to facilitate effortless motion and reduce strain on the motor.
Finish Options | Maintenance |
Available in galvanized, powder-coated, or PVC finishes to enhance durability and resistance to environmental elements. | Electric gates are designed for low maintenance, requiring only periodic checks to ensure optimal functionality |
