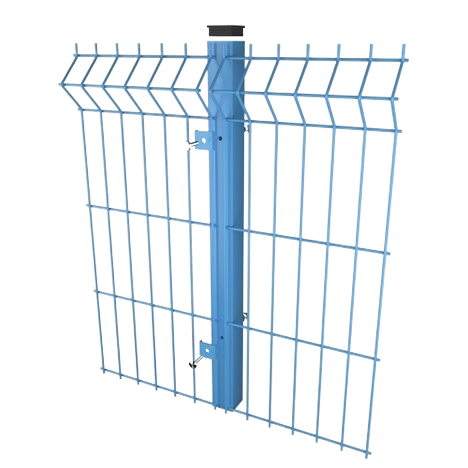

Welded Mesh Fence 3D38™

The Welded Mesh Fence 3D38 functions as an industrial-grade security fencing system made to protect public buildings along with industrial sites. Both vertical and horizontal dimensions of this fence incorporate 4 to 5 mm sturdy wires while highlighting a unique 3D profile design.

The Welded Mesh Fence 3D38 delivers security protection through non-chain-link fence technology at affordable costs along with attractive aesthetics as decorative fence.

Contact us

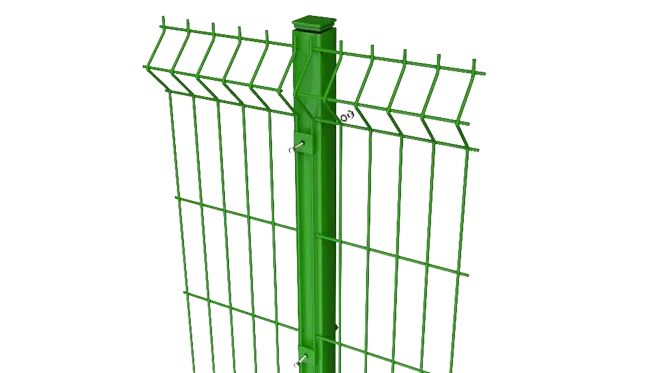

Welded Mesh Fence 3D38™


post
pannel
fittiing

Key Features of Welded Mesh Fence 3D38™

Mesh Size38 mm x 200 mm
Wire Diameter4mm or 5mm vertical and horizontal wires
MaterialGalvanized steel
Post Dimensions50 x 50mm, 60 x 60mm, or 50 x 100mm depending on fence height
Standard Panel Width2500 mm, Customizable
Panel Heights950 mm, 1450 mm, 1950 mm (stackable up to 6000 mm)
Tensile StrengthMin. 500 N/mm²
Welding Strength50% of total tensile strength in accordance with EN 10223-7
Post Dimensions (Detailed)50 x 50 mm (up to 1.5m high), 60 x 60 mm SHS (up to 3000 mm), 50 x 100 mm RHS (up to 6000 mm)
Post Centers2500 mm, Customizable
ColorsRAL 9005 Black, RAL 6005 Green, Customizable
Mesh Size
38 mm x 200 mm
Wire Diameter
4mm or 5mm vertical and horizontal wires
Material
Galvanized steel
Post Dimensions
50 x 50mm, 60 x 60mm, or 50 x 100mm depending on fence height
Standard Panel Width
2500 mm, Customizable
Panel Heights
950 mm, 1450 mm, 1950 mm (stackable up to 6000 mm)
Tensile Strength
Min. 500 N/mm²
Welding Strength
50% of total tensile strength in accordance with EN 10223-7
Post Dimensions (Detailed)
50 x 50 mm (up to 1.5m high), 60 x 60 mm SHS (up to 3000 mm), 50 x 100 mm RHS (up to 6000 mm)
Post Centers
2500 mm, Customizable
Colors
RAL 9005 Black, RAL 6005 Green, Customizable

Components of Welded Mesh Fence 3D38

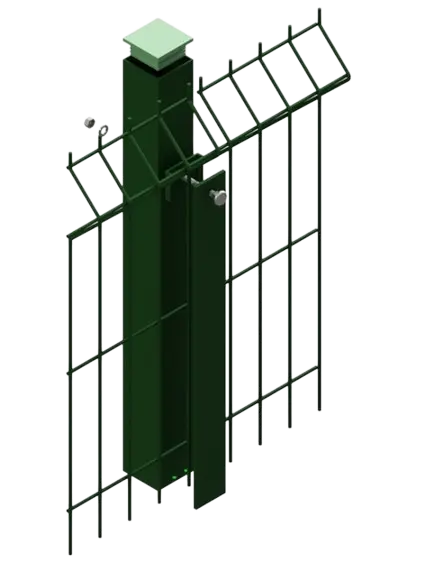

post rander

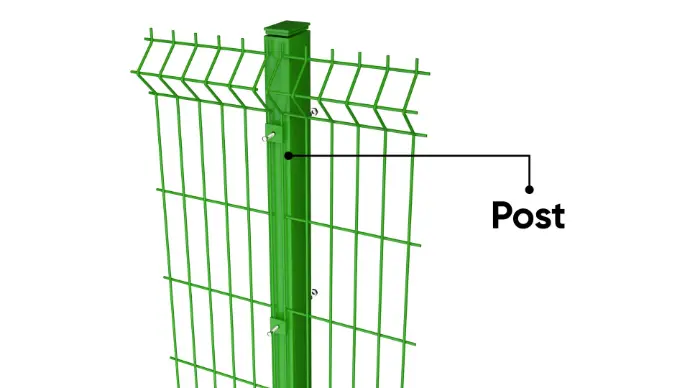

Posts

The Welded Mesh Fence 3D38 uses hollow steel posts to accomplish its function in securing properties like security mesh fence of different scales in an application that derived its name from these steel posts. The posts are available in sizes such as 50x50mm, 60x60mm and 50x100mm based on the fence height to offer necessary strength against pressure and force. Several mounting alternatives are decided by the length and shape of the fence posts.

  • Over-length set in the ground
  • Base plated for bolting onto concrete
  • Cranked for wall mounting
  • Covered with a plastic cap on top
  • Extended with a 45-degree crank on top
  • Extended with a double (Y) crank on top

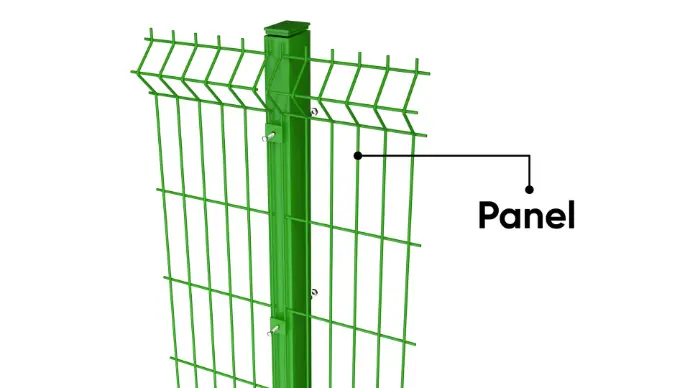

Panels

Designed at 2500 mm width, mesh panels use welded 4mm or 5mm vertical and horizontal wires that create rectangular openings with dimensions of 38x200mm. A specialized 3D profile on these panels reinforces their structure. The standard heights of panels range between 950mm and 1950mm while stacked fence options reach heights of up to 6000 mm. Security features along with climbing deterrents include:

  • 30mm projecting spikes
  • Optional barbed wires (3 or 6 rows)
  • Barbed wire with concertina roll

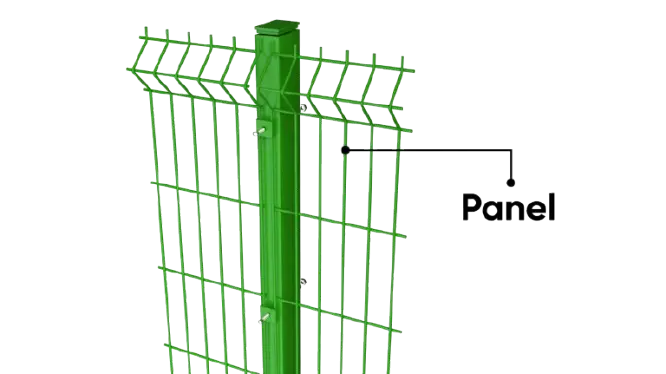

panel

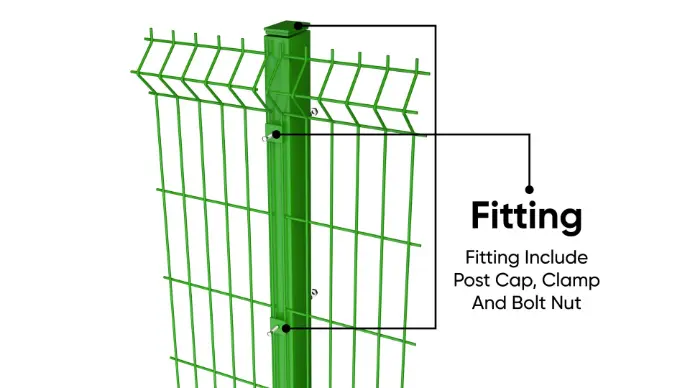

Fittings

Fittings

The posts receive holding strength from metal clips or flat bars which link mesh panels to them. Metal clips and flat bars should be attached with round head 8mm diameter bolts that have 400mm intervals between them.

  • Secure Fastening: Round head 8mm bolts attach clips/bars at 400mm intervals for firm support.
  • Tensile Strength: Min. 500 N/mm²
  • Welding Strength: 50% of total tensile strength in accordance with EN 10223-7

Finishing Options

Hot-Dip Galvanizing

The steel components need hot-dip galvanizing treatment in compliance with BS EN ISO 1461 for extended durability through enhanced corrosion resistance.

Powder Coating

The components need to align with BS EN 13438 standards for hot-dip galvanizing with high-quality powder coating that enhances durability and appearance.

Marine-Grade Protection

A specialized marine-grade coating system must be applied to outdoor elements located within 500 meters of saltwater or estuarine since it provides strong protection against salt-induced corrosion.

PVC Coated

The PVC coating applied to the Welded Mesh Fence 3D50™ Fencing System offers several advantages with corrosion resistance in addition to durability and smooth surface features which create a lasting protective appearance.

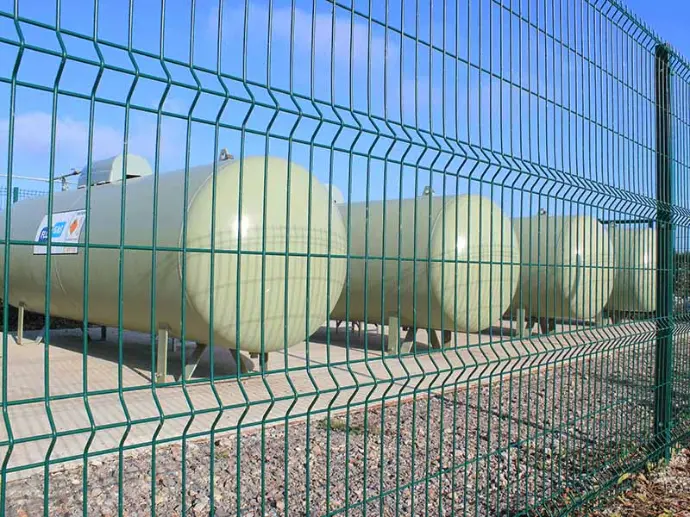

Applications of Welded Mesh Fence 3D38


Residential Areas
Commercial Properties
Commercial Properties
