Saudi Aramco Type 1 Fence: Built to Last Security
Saudi Aramco Type 1 Fence | Solid Protecting Barrier

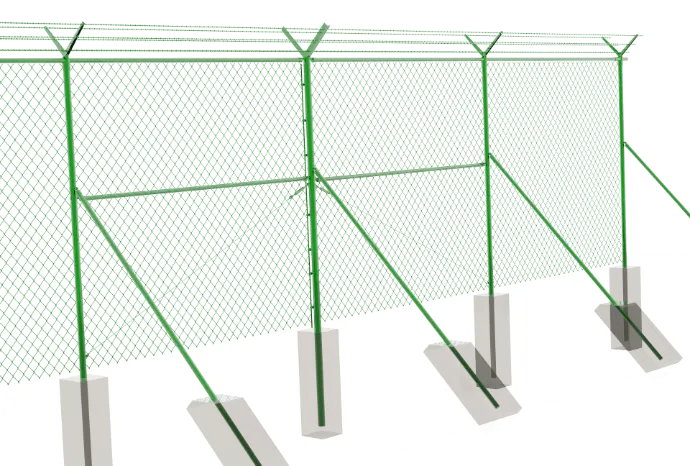

Saudi Aramco Type 1 Fence is a robust security solution that is meticulously engineered to comply with Saudi Aramco standards. The solid structure of these fences is for low-risk areas, which require minimal protection and safety. Hitech offers optimal security with its Saudi Aramco fencing system, ensuring quality, durability, and reliable security.
Saudi Aramco Type 1 Fence | Hitech’s Top-notch Fence
Optimal Security
These fences are engineered to provide security perimeters for low-risk areas. Saudi Aramco Type 1 fence serves as a dependable, formidable barrier.
Premium Quality Construction
Constructed with galvanized steel and complemented by PVC coating, these fences deliver optimal performance and long-term durability against harsh conditions.
Regulatory Compliance
Fully compliant with Saudi Aramco standards, ensuring security requirements for industrial sectors across Saudi Arabia are consistently met.
Saudi Aramco Type 1 Fence | Major Elements
Saudi Aramco Type 1 Fence | Major Elements

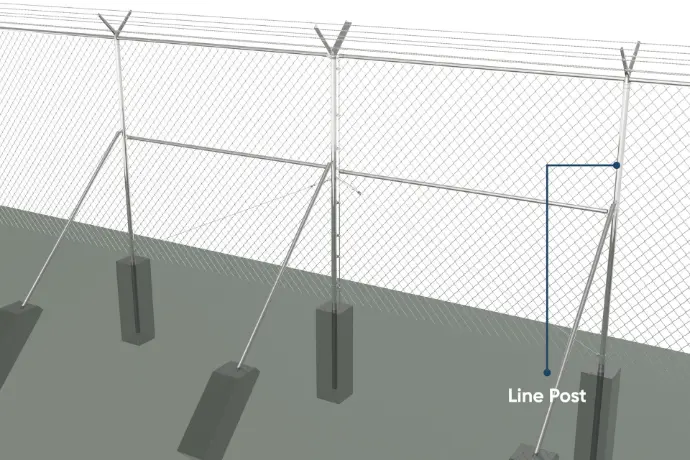

Line Post
The line post is a critical component of the Saudi Aramco Type 1 Fence system, providing essential structural support and alignment. Measuring 3400 mm in length with a diameter of 60 mm and a wall thickness of 3.91 mm, these posts comply with ASTM A-53 Sch.40 standards, ensuring high tensile strength (minimum 330 MPa) and yield strength (205 MPa) for long-term durability and corrosion resistance. Properly spaced and anchored, line posts maintain fence stability, prevent sagging, and evenly distribute tension across the chain link fabric for optimal security and performance.

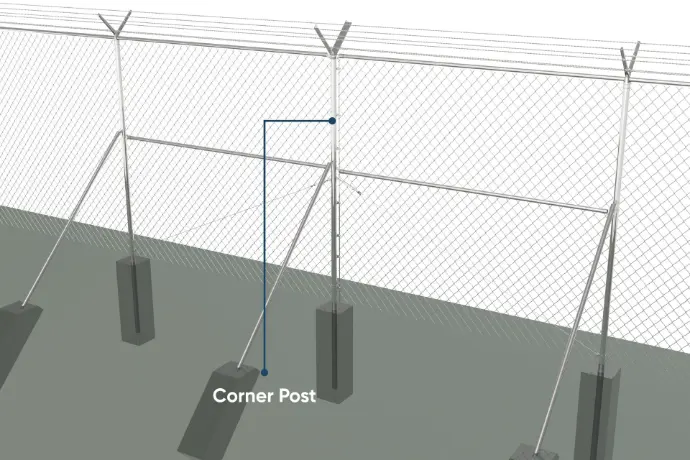

Corner, End and Strainer Post
Corner, end, and strainer post are the most focal points of the Saudi Aramco type 1 Fence system, extending sturdy structural support and security. These posts measure 3400 mm in length with a diameter of 73 mm and a thickness of 5.16 mm. All strainer, corner, and end posts comply with ASTM A-53 Sch.40 standards and have a minimum tensile strength of 330 mPa and yield strength of 205 MPa, which acts as a strong corrosion-resistant. The corner post maintains the alignment and stability of the fence. A strainer post or line tension post holds the fabric tension along the stretches to avoid sagging. In the last, end posts are fastened to secure the end of chain link fabric and support gate installations.

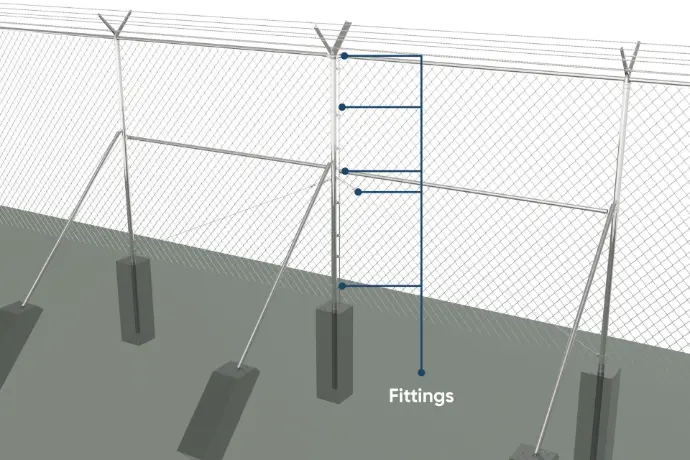

Fittings
In all of Hitech’s Aramco fencing system, the extension arms are made up of pressed sheet of 1.5 mm to create a shape of an angle installed at the top-of-the-line post, corner, and end post. All the fittings, including round bands, offset bands, stretcher bars, carriage bolts, truss rods, turnbuckles, M8x40mm bolts, and nuts, are curated in compliance with ASTM F626 standard.
Wire Enhancements
Chain Link Fabrics
Saudi Aramco Type 1 Fences are composed of chain link fabrics that are not only powerful security barriers but an aesthetic element to your landscape. These are curated with a 50x50 mm diamond mesh pattern, fabric of 2400 mm height, and comply with ASTM A392 standards. The top and bottom of the fabric are machine twisted to foster a barbed finish, cutting the wire at an angle.
Stirrup Wire
These wires are attached to the fences to provide additional support and attachment points. It is often connected to the vertical post to the mesh or chain-link fabric. It clinches to the high stress point of the fence to distribute load and pressure evenly across the structure. This fencing system is strong resistant against deformation and damage, defying intervention of external forces.
Barbed Wire
The Saudi Aramco Type 1 fence system incorporates barbed wire at the top of the fence to add a layer of security by fostering a hazardous boundary. It consists of two twisted strands of galvanized steel that have a nominal diameter of 2.5 mm. To add a layer of security, four barbs each of 2 mm nominal diameter are interlocked with main strands, equally 101 mm spaced apart.
Saudi Aramco Type 1 Fence | Specifications
| Feature | Specification |
|---|---|
| Above Ground Height | 2.7m |
| Mesh Size | 50x50 mm |
| Wire Diameter | 3.76 mm |
| Chain Link Fabric Height | 2400mm |
| Extension Arm Height from Fabric | 300mm |
| Strainer Post Placement | Every 90m |
| Back Support | 3000mm Long, 42.4mm Dia, 3.56mm Thickness, placed every 90m |
| Continuous Top Rail | 6000mm Long, 42.4mm Dia, 3.56mm Thickness, placed every 6m |
| Post Embedded in Foundation | 975 mm |
| Above Ground Height | 2.7m |
| Mesh Size | 50x50 mm |
| Wire Diameter | 3.76 mm |
| Chain Link Fabric Height | 2400mm |
| Extension Arm Height from Fabric | 300mm |
| Strainer Post Placement | Every 90m |
| Back Support | 3000mm Long, 42.4mm Dia, 3.56mm Thickness, placed every 90m |
| Continuous Top Rail | 6000mm Long, 42.4mm Dia, 3.56mm Thickness, placed every 6m |
| Post Embedded in Foundation | 975 mm |
Dimension (Post & Pipes)
| Item | Length (mm) |
|---|---|
| Line Post | 3400 |
| Corner/Strainer & End Post | 3400 |
| Brace Rail | 3000 |
| Top Rail | 6000 |
| Line Post | 3400 |
| Corner/Strainer & End Post | 3400 |
| Brace Rail | 3000 |
| Top Rail | 6000 |
Wire Product Class: Specifications
| Class | Chain Link Fabrics | Tension Wire | Stirrup Wire | Tire Wire | Barbed Wire |
|---|---|---|---|---|---|
| Specifications | 50x50 mm Opening, 3.76 mm Wire Dia | N/A | 3 | N/A | 2.50 mm Dia, 6 rows |
| Class | Specifications |
| Chain Link Fabrics | 50x50 mm Opening, 3.76 mm Wire Dia |
| Tension Wire | N/A |
| Stirrup Wire | 3 |
| Tire Wire | N/A |
| Barbed Wire | 2.50 mm Dia, 6 rows |
Saudi Aramco Type 1 Fence System | Key Features
High Security
Enhanced protection against intrusion and breach attempts—ideal for critical infrastructure zones.
Durable Materials
Galvanized steel construction ensures strength, reliability, and long service life in demanding conditions.
Variety of Posts
Strainer, corner, end, and line posts provide optimal support and layout flexibility.
Continuous Top Rail
Distributes loads evenly across the fence, improving resistance to impact and environmental stress.
Galvanized Fittings
Bolts, bands, and extension arms are hot-dip galvanized for superior corrosion protection.
Compliance
Designed per ASTM A123 and ASTM A153 galvanization standards for proven durability.
Contact Us
Protect your assets with Hitech Fence’s . For consultations, demonstrations, or inquiries:
Empower your infrastructure to be above threat-safe, strong and prepared.
