Welded Mesh Fence 2D868 – Robust and Reliable Security Fencing


HiWeld 2D868™

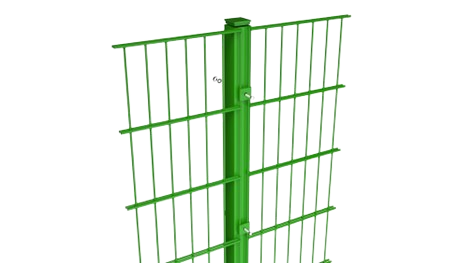

The HiWeld 2D868 TM, a high-performance double wire mesh fencing system that combines unmatched strength and aesthetics. Designed for demanding commercial environments, this fencing system provides a formidable barrier against intruders and vandals, making it an ideal choice for large-scale security applications.

Contact Us

HiWeld 2D868™

Key Features of HiWeld 2D868


Mesh Size

50mm x 200mm

Wire Diameter

Twin 8mm diameter horizontal wires on either side of 6mm diameter vertical wires

Material

Galvanized steel

Post Dimensions

40 x 40mm, 60 x 60mm, or 50 x 100mm depending on fence height

Standard Panel Width

2500 mm

Panel Heights

950 mm, 1450 mm, 1950 mm (stackable up to 6000 mm)

Tensile Strength

Min. 500 N/mm²

Welding Strength

50% of total tensile strength in accordance with EN 10223-7

Panel WidthS

2500 mm

Post Dimensions

50 x 50 mm (up to 1.5m high)

60 x 60 mm SHS (up to 3000 mm)

50 x 100 mm RHS (up to 6000 mm)

Post Centers

2510 mm

Key Components of HiWeld 2D868TM

HiWeld 2D868™ posts

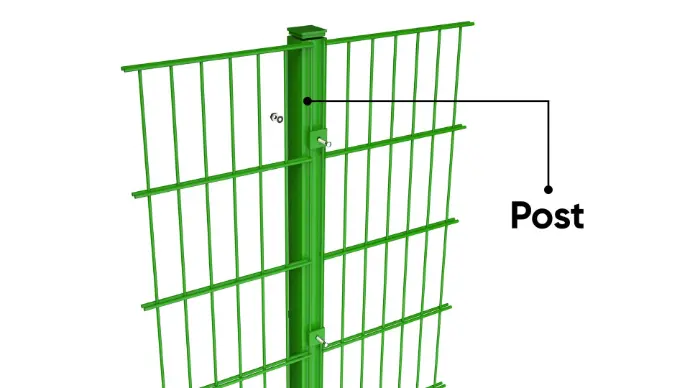

Posts

 Posts

HiWeld 2D868TM is designed to secure properties of varying scales, with its name inspired by its hollow steel posts. These posts come in measurements of 40x40mm, 60x60mm, or 50x100mm, depending on the fence's height, providing the necessary strength to withstand pressure and force. The posts determine the fence's length and offer several mounting options:

  • Over-length set in the ground
  • Base plated for bolting onto concrete
  • Cranked for wall mounting
  • Covered with a plastic cap on top
  • Extended with a 45-degree crank on top
  • Extended with a double (Y) crank on top

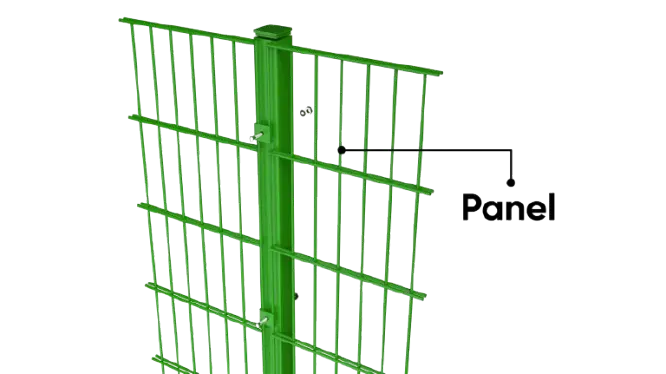

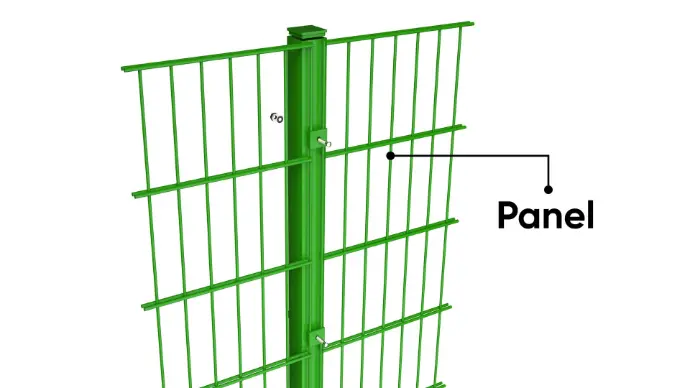

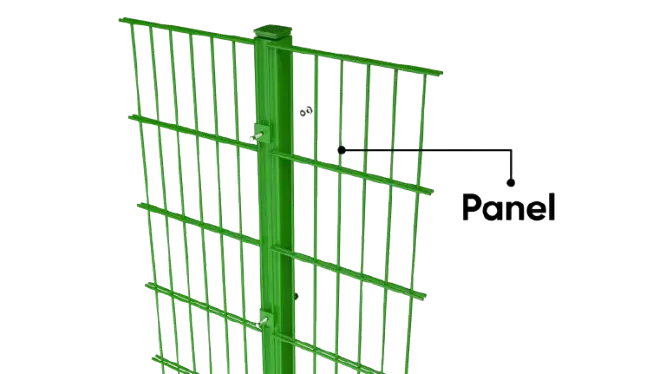

Panels:

 The mesh between the posts is known as a panel. These mesh panels feature double horizontal wires of 8mm diameter and single vertical wires of 8mm diameter with a flat profile. The wires are welded at junctions, forming a rectangular opening of 50x200mm, and are treated with a galvanized zinc alloy for enhanced durability. The standard panel heights are 950mm, 1450mm, and 1950mm, and can be stacked to create a fence up to 6000mm high.

To enhance security and prevent climbing, options include:

  • 30mm projecting spikes
  • 3 or 6 barbed wires
  • 3 or 6 barbed wires with a concertina role

The tensile strength of the wires is a minimum of 500 N/mm², with the welding strength at least 50% of the total tensile strength of the wire, in compliance with EN 10223-7.


HiWeld 2D868™ pannels
HiWeld 2D868™ fittings

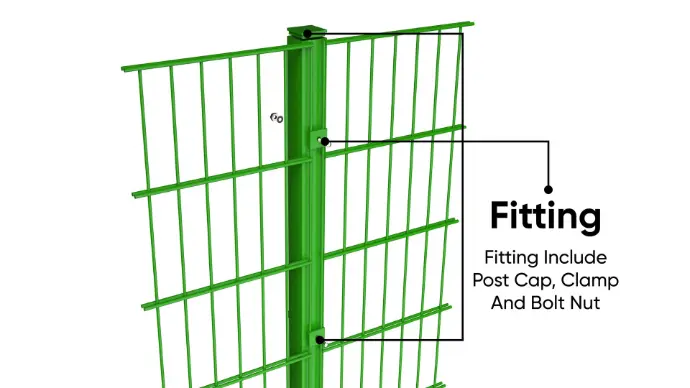

Fittings

The system uses rigid 40x50mm metal clips or 50x5mm flat bars along the full length of the post to secure the welded steel mesh panels. These fittings are bolted every 400mm using 8mm diameter round head bolts.

Gates

Matching single leaf and double leaf gates are available for the HiWeld 2D868TM fencing system. These gates come with a variety of opening mechanisms and can be manually or automatically operated.

HiWeld 2D868™ gates

Finishing Options

Hot-Dip Galvanizing

All steel components shall be hot-dip galvanized in accordance with BS EN ISO 1461 to ensure superior corrosion protection and extended service life.

Powder Coating

For enhanced durability and aesthetic finish, components shall comply with BS EN 13438, involving hot-dip galvanizing followed by a high-quality powder coating process.

Marine-Grade Protection

For installations within 500 meters of saltwater or estuaries, a specialized marine-grade coating system shall be applied to provide robust resistance against salt-induced corrosion.

Standard Colors

Black

RAL 9005

Green

RAL 6005

Custom

custom colors are available upon request.

Applications of HiWeld 2D868


Why Choose Hitech Fence’s Welded Mesh Fence 2D868?

At Hitech Fence, our dedication extends through every phase of your fencing project. We not only design and manufacture the Welded Mesh Fence 2D868 to meet your specific needs but also provide comprehensive support and installation services. Our experienced team is committed to ensuring your complete satisfaction from start to finish. We tackle every challenge head-on, ensuring that the installation process is smooth and that you quickly benefit from the enhanced security and aesthetics of our reliable fencing solutions
