Guard Rails: Hitech's Reliable Safety Barriers
Guard Rails

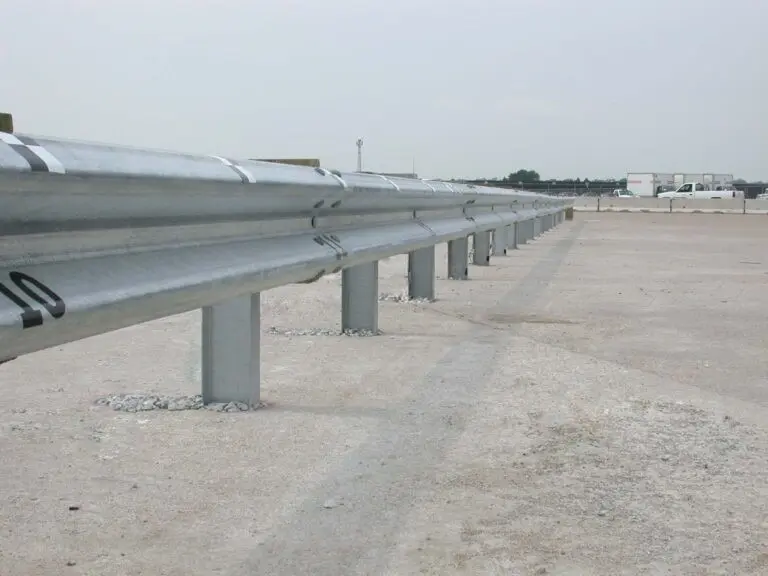

Explore the Hitech Guard Rails System, designed to enhance safety and security across various environments. Our guard rails are engineered to prevent vehicles from veering off roads, offering critical protection for roadside structures and pedestrian areas.
Robust Protection:
Our guard rails are made from high-strength galvanized or painted steel, capable of withstanding significant impacts and providing durable roadside safety.
Versatile Applications:
Ideal for roads, overhead bridges, ports, docks, and more, our guard rails serve as a vital safety feature in numerous settings.
Customizable Solutions:
Adapt our guard rails to meet specific site requirements with options for different sizes and finishes.
Available Types
Features of Hitech Guard Rails
High Impact Resistance
Designed to absorb and redistribute collision energy.
Corrosion Resistant
Galvanized or painted finishes to withstand environmental elements
Installation Flexibility
Options for over-length insertion, base plating, or cranking for various mounting scenarios.

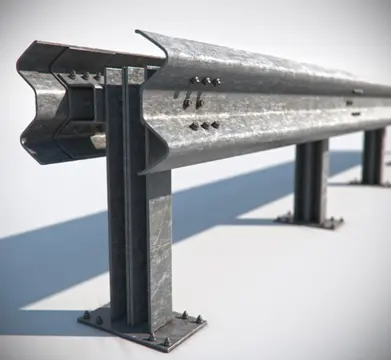

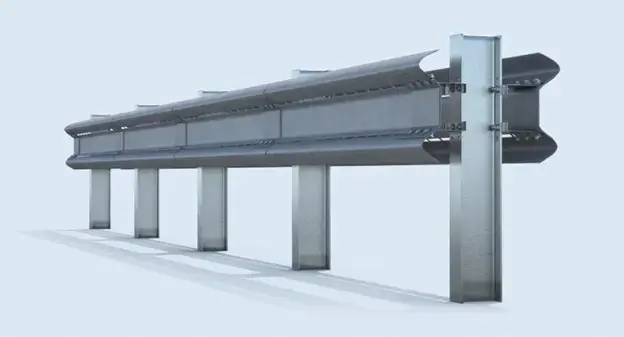

System Components of Hitech Guard Rails
Posts
The posts in the Hi-Guardrail system are made from durable C channel steel, measuring 150x75mm with a thickness of 5mm. Standardized at a center-to-center distance of 2000mm, these posts provide a stable framework for the fencing system. The posts can reach heights up to 2200mm for substantial security, with adjustable options for those preferring grounded installations. Fitting options include:
- Over-length for ground installation
- Base plated for bolting onto concrete
- Cranked for wall mounting
Straight / Curved / End Rails
The guardrails are constructed from sturdy W-shaped metal sheets, ensuring the system's durability. Rail dimensions are 83x310mm, with thickness varying by fence height: 2mm thick for fences up to 1100mm, 2.5mm for fences up to 1800mm, and 3mm for fences up to 2200mm. Standard rail lengths are 3000mm, while curved end rails extend up to 600mm for customized installations. Details on joints and connections will be discussed in the fittings section.
Fittings
Rail-to-rail connections use a W-shaped sheet slice measuring 318mm, fastened by hexagonal M1250 bolts for a secure connection. Rail-to-post connections can include an optional spacer (150x75x5mm, 356mm long) made of C channel steel, secured with hexagonal M1650 bolts. Optional components like alignment plates and tie plates are available to further reinforce the system and enhance safety.
Specifications
Steel Block Size (OP.) | Fasteners and accessories |
Cl50x75x5- L356mm | Hex. Bol M16x50-8.8-0IN933 Hex. Bolt M12x30-8.8-DIN933 Hex. Nut M161M12-DIN334 WashersforM16IM12-DIN125 |
Cl50x75x5- L356mm | Hex. Bol M16x50-8.8-0IN933 Hex. Boll M12x30-8.8-0IN933 Hex. Nut M16IM12-DIN334 WashersforM161M12-0IN125
|
Cl50x75x5- L356mm | Hex. Bol M16x50-8. s. EllN933 Hex. Bolt M12x30-8.8-DIN933 Hex. Nut M161M12-DIN334 WashersforM16IM12-0IN125 |
Component | Specification |
Post Material | C channel steel |
Rail Type | W-shaped metal sheets |
Standard Heights | Up to 2.2 meters |
Rail Thickness | Varies with height (2mm, 2.5mm, 3mm) |
Post-to-Post Spacing | 2000mm center-to-center |
Dimensions
Code |
Post Spec. |
Post Height |
Post Section |
W Sec Rail |
Rail Length |
Rall Ends |
P to P Pitch C/C |
Con. W Rail Splice |
Con. Slotted Hole Size |
HIGR2011 |
C150x75x5 mm |
1.1m |
150x75x5 mm |
2x83x310 mm |
3.0 m |
2 |
2000 mm |
3x83x310 L318 mm |
22x30 mm |
HIGR2518 |
C150x75x5 mm |
1.8m |
150x75x5 mm |
2.5x83x310 mm |
3.0 m |
2 |
2000 mm |
3x83x310 L318 mm |
22x30 mm |
HIGR3022 |
C150x75x5 mm |
2.2m |
150x75x5 mm |
3x83x310 mm |
3.0 m |
2 |
2000 mm |
3x83x310 L318 mm |
22x30 mm |
Standard Colors
|
Black |
RAL 9005 |
|
Green |
RAL 6005
|
Brown | RAL 8017 |
Green | RAL 6005 |
Grey | RAL 7012 |
|
Custom |
custom colors are available upon request.
|
Applications of Guard Rails Fencing System
Installation Excellence
Hitech Fencing provides full project support, from design to installation, ensuring that our guard rails meet the highest standards of safety and effectiveness. Whether for large-scale infrastructure projects or smaller installations, our expertise ensures optimal setup and functionality.
