Welded Mesh Fence 3D Extra – Ultimate Security and Durability

Welded Mesh Fence 3D Extra

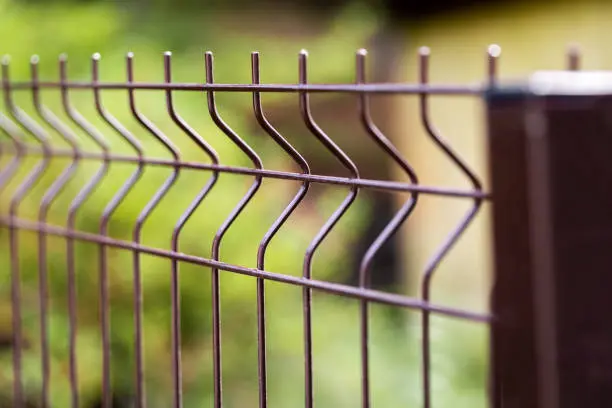

Welded Mesh Fence 3D Extra represents an advanced fencing product built to deliver superior security with extended lifespan. Its 3D structure integrates V-shaped supports which enhance strength as well as preserve visual appeal.

This fence product uses high-quality galvanized steel combined with protective powder coating to resist both corrosion and rust and harsh weather. The high-security mesh fence serves all property types including homes and businesses and industries due to its stylish appearance and strong safety features. The low-maintenance system installs easily thus providing suitable security solutions that match any building design.

Welded Mesh Fence 3D Extra
post
panel
fitting

Key Features of Welded Mesh Fence 3D Extra™

Mesh SizeTwo sections of 200 x 50 mm and five sections of 200 x 25 mm
Wire Diameter4 mm vertical and 6 mm horizontal wire
MaterialGalvanized steel
Standard Panel Width2500 mm, customizable
Panel Heights950 mm, 1450 mm, 1950 mm (stackable up to 6000 mm)
Tensile StrengthMin. 500 N/mm²
Welding Strength50% of total tensile strength (EN 10223-7)
Post Dimensions50 x 50 mm (up to 1.5 m), 60 x 60 mm SHS (up to 3000 mm), 50 x 100 mm RHS (up to 6000 mm)
Post Centers2510 mm
ColorsRAL 9005 Black, RAL 6005 Green, customizable
Mesh Size
Two sections of 200 x 50 mm and five sections of 200 x 25 mm
Wire Diameter
4 mm vertical and 6 mm horizontal wire
Material
Galvanized steel
Standard Panel Width
2500 mm, customizable
Panel Heights
950 mm, 1450 mm, 1950 mm (stackable up to 6000 mm)
Tensile Strength
Min. 500 N/mm²
Welding Strength
50% of total tensile strength (EN 10223-7)
Post Dimensions
50 x 50 mm (up to 1.5 m), 60 x 60 mm SHS (up to 3000 mm), 50 x 100 mm RHS (up to 6000 mm)
Post Centers
2510 mm
Colors
RAL 9005 Black, RAL 6005 Green, customizable

Components of Welded Mesh Fence 3D Extra

posts

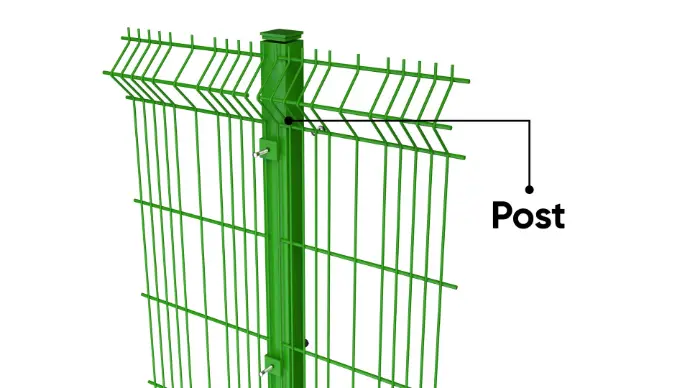

Posts

Manufacturers have designed the Welded Mesh Fence 3D Extra posts to deliver enhanced stability with increased security features. The fence's dependable structure includes features against climbing attempts and boosts the entire fence's structural stability. Made to resist corrosion and designed for extended service life, these posts combine secure stability with attractive appearance, making them suitable for diverse locations. This post comes with various mounting options as:

  • Over-length set in the ground
  • Base plated for bolting onto concrete
  • Cranked for wall mounting
  • Covered with a plastic cap on top
  • Extended with a 45-degree crank on top
  • Extended with a double (Y) crank on top

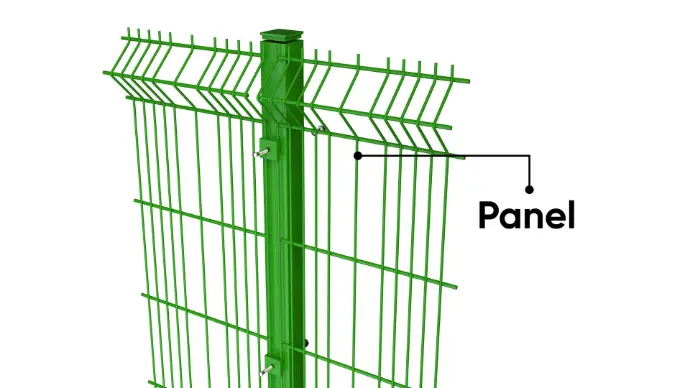

Panels

The security barrier consists of 2500mm wide panels made from 4mm vertical wires and 6mm horizontal wires that form rectangular openings. A special 3D profile feature on the panels provides security benefits and decorative striped aesthetics to fences. Our security panels come in elevated dimensions of up to 1950mm and they allow stacking until they reach heights of 6000mm while providing optional spike and barbed wire protection.

  • 30mm projecting spikes
  • Optional barbed wires (3 or 6 rows)
  • Barbed wire with concertina roll
panel
fitting

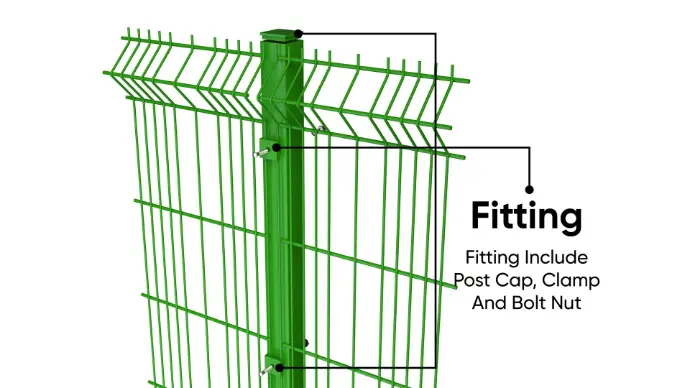

Fittings

The fence stability depends on 40x50mm metal clips or 50x5mm flat bars which serve to connect panels to posts through 8mm diameter bolted installation at 400mm intervals. This installation remains sturdy because the fittings receive bolted connections at 400mm spacing points using 8mm diameter bolts to achieve security.

  • Secure Fastening: Round head 8mm bolts attach clips/bars at 400mm intervals for firm support.
  • Tensile Strength: Min. 500 N/mm²
  • Welding Strength: 50% of total tensile strength in accordance with EN 10223-7

Finishing Options

Hot-Dip Galvanizing

The steel components need hot-dip galvanizing treatment in compliance with BS EN ISO 1461 for extended durability through enhanced corrosion resistance.

Powder Coating

The components need to align with BS EN 13438 standards for hot-dip galvanizing with high-quality powder coating that enhances durability and appearance.

Marine-Grade Protection

A specialized marine-grade coating system must be applied to outdoor elements located within 500 meters of saltwater or estuarine since it provides strong protection against salt-induced corrosion.

PVC Coated

The PVC coating applied to the Welded Mesh Fence 3D Extra Fencing System offers several advantages with corrosion resistance in addition to durability and smooth surface features which create a lasting protective appearance.

Applications of Welded Mesh Fence 3D Extra


Residential Areas
Commercial Properties
Commercial Properties

Downloads
