Bow Top Fencing: Built to last Protection


Bow Top Fencing | Effective Security Measure

Our bow top fence is an aesthetic sensibility of security that creates a friendly and visually enticing barrier. It features a pronounced bow and a subtle curve, which brings sophistication and a welcoming entrance. It is the perfect security solution for commercial areas like parks, malls, and schools, ensuring reliable protection

Contact Us

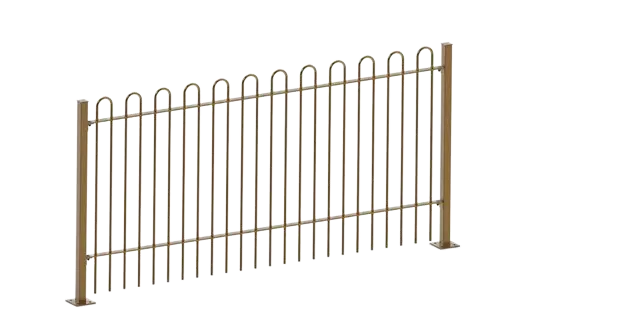

Bow Top Fencing

Bow Top Fencing | Key Features

A versatile and secure fencing solution with elegant curves and robust construction.

🧗 Anti-Climb Design

Anti-climb design deters unauthorized access effectively.

🧱 Multiple Mounting Options

Mounting options include wall-mounted, inset, or freestanding installations.

📘 Standards Compliant

Complies with BS EN 1722-9 standards for fencing.

🎨 Customizable Design

Customizable design options to suit specific security needs.

📏 Safe Pale Spacing

Pale spacing adheres to building regulations for anti-entrapment safety.

🏞️ Slope Compatible

Panels can be adjusted for sloping terrain with raked or stepped configurations.

🔒 Concealed Fixing

Concealed rail-to-post fixing provides a seamless and clean appearance.

🏗️ Durable Structure

Robust construction ensures long-lasting durability and strength.

🌐 Versatile Applications

Ideal for applications ranging from decorative to highly secure installations.

🚪 Matching Gates

Available in single/double leaf, swing, sliding, or tracked, with manual or automatic operation.

Bow Top Fencing | Components


Posts

Post Options: Constructed to match the bow top fence panel height using round 60x3 mm sections, these posts are available in various mounting options:

Installation Options

  • Get extended length to fixate it in the ground.
  • Base plated for concrete anchoring
  • Cranked to accommodate wall mounting.

Panels

Built up to 1800 mm high, each panel features horizontal RHS rails (60x30x2 mm) and 19 mm hollow round pales.

The curved tops of the pales are cut at a 45-degree angle and point downward for enhanced security.

Fittings

The bow top fence panels are designed with up to 1800 mm high horizontal RHS rails (60x30x2 mm) and 19 mm hollow round pales.

Gates

Matching Bow Top gates are available in single or double leaf, swing, sliding, and tracked, with options for manual or automatic operation.

Bow Top Fencing: Dimensions

Code Height Pales Post Size Post Center Set in Concrete Base Plated Horizontal Rail
HTB1001.00M19mm Round60x3mm round3.0 m Center250x250x600350x300x15060x30x2mm
HTB1201.20M19mm Round60x3mm round3.0 m Center250x250x700350x300x23060x30x2mm
HTB1501.50M19mm Round60x3mm round3.0 m Center250x250x800350x300x25060x30x2mm
HTB1801.80M19mm Round60x3mm round3.0 m Center250x250x800350x300x25060x30x2mm
HTB100 & HTB120
HTB100HTB120
Height1.00M1.20M
Pales19mm Round
Post Size60x3mm round
Post Center3.0 m Center
Set in Concrete250x250x600250x250x700
Base Plated350x300x150350x300x230
Horizontal Rail60x30x2mm
HTB150 & HTB180
HTB150HTB180
Height1.50M1.80M
Pales19mm Round
Post Size60x3mm round
Post Center3.0 m Center
Set in Concrete250x250x800
Base Plated350x300x250
Horizontal Rail60x30x2mm

Finishing Variations

Hot-Dip Galvanizing

To ensure corrosion and extended service life, all the steel essentials of the fence should be hot galvanized in compliance with BS EN ISO 1461

Powder Coating

After hot dip galvanizing, the components are passed through high-coated powder BS EN 13438 to enhance durability and aesthetic finish.

Marine-Grade Protection

To withstand salt-induced corrosion in installations within 500 meters of saltwater, a special marine-grade coating is applied to provide lasting resistance

PVC Coating

The PVC-coated fence Secure 476 Double provides secure cover with a long-lasting weatherproof finish. It extends product lifespan by resisting corrosion.

Secure your space with our built-to-last Bow Top Fencing

Our durable bow top fencing is designed to exude a warm entrance, keeping your security perimeters aligned. Keep your pets and children safe with its curb appeal. To meet every need, Hitech provides a wide variety of fencing options. Fortify your area with an immaculate combination of protection and style with anti trap bow top fencing!

Applications of Palisade Fencing System


Installation Excellence

 At HITECH Fencing, we fully support you throughout your fencing project from start to finish. Not only do we custom design and manufacture mesh fencing tailored to your specific needs, but we also provide professional installation services. Our experts are committed to guiding you through every step of the installation process, whether for large or small projects. With our help, you can quickly benefit from secure and reliable fencing, ensuring your complete satisfaction and safety.
