Welded Mesh Fence Secure 476 – Advanced Security Mesh System
Welded Mesh Fence Secure 476
The advanced security mesh system Welded Mesh Fence Secure 476 provides maximum protective capabilities to end users. Security mesh Secure 476 implements high-strength materials while presenting a durable and resistant material that maintains an attractive design aesthetic.
Welded Mesh Fence Secure 476 provides residential, commercial and industrial security along with visibility and airflow in addition to long-term protection. This dependable security mesh fence offers complete safety improvements and relaxed confidence at the perimeter area.
Key Components of Welded Mesh Fence Secure 476

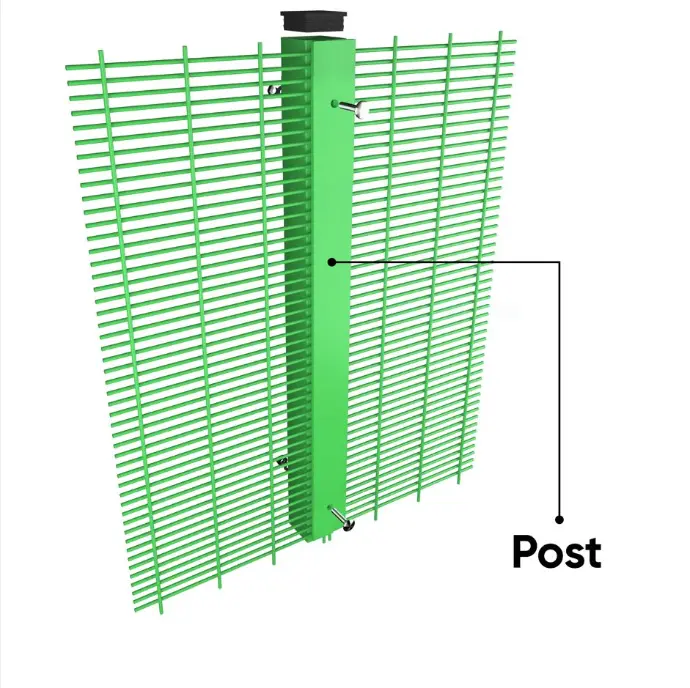

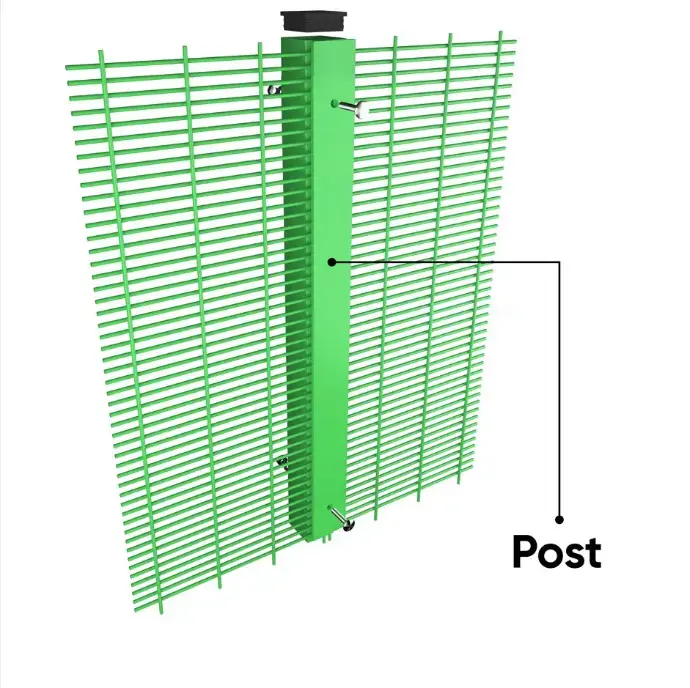

Posts
The Secure 476 Welded Mesh Fence represents a security solution for properties of different dimensions that gains its name because of its hollow steel posts. The dimensional options for welded mesh posts include 50x50mm, 60x60mm or 50x100mm giving each fence height its required resistance against pressure and force. The dimensions of the fence depends on these posts which present different installation methods for security purposes.
- Over-length set in the ground
- Secure 476 base plates create concrete bolting attachments.
- Cranked for wall mounting
- A plastic top covering shields the fencing system
- A 45-degree crank extension builds up the structure from the top
- The double (Y) crank style extension can be added on top.

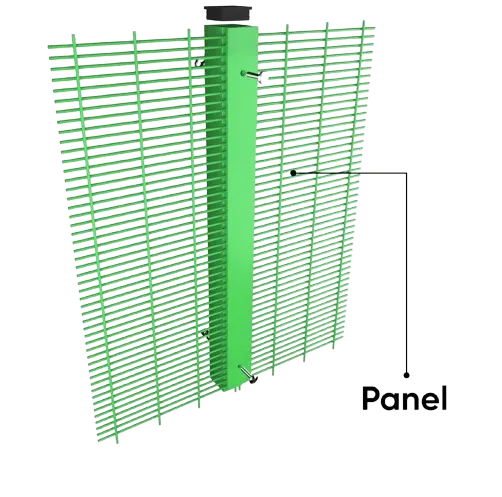

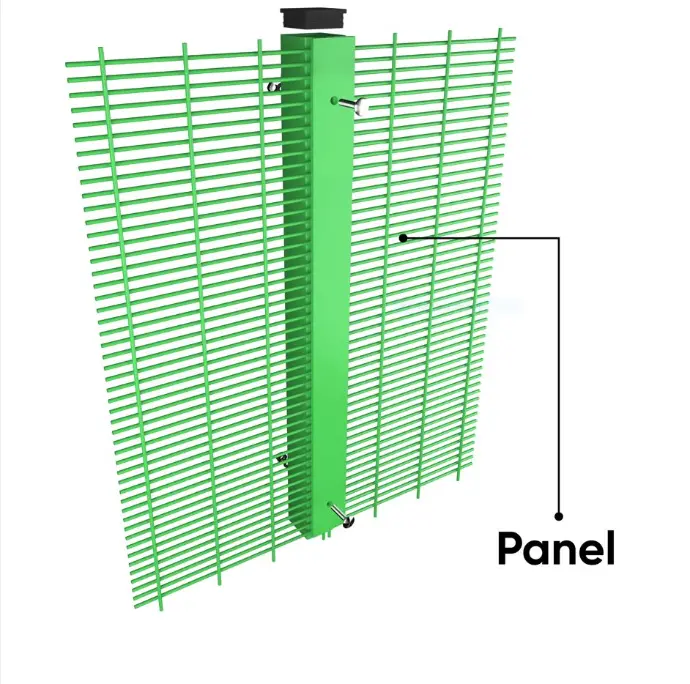

Panels
Panels refer to the structure formed by mesh wires within posts. The wire mesh panels measure 2500mm in width and combine 4mm and 5mm wires that create specific 76.2x12.5mm rectangular openings through welding for enhanced reinforcement. Standard fence panel measurements consist of 950mm, 1450mm and 1950mm yet these sections can fit together to stretch to 6000mm.
Additional security features and climbing deterrents exist as follows:
- 30mm projecting spikes
- 3 or 6 barbed wires
- Secure the fencing by installing 3 or 6 barbed wires that contain a concertina design.
- The wires used for the fence meet EN 10223-7 requirements by showing tensile strength at 500 N/mm² but the welded portion can utilize at least half of this strength level.

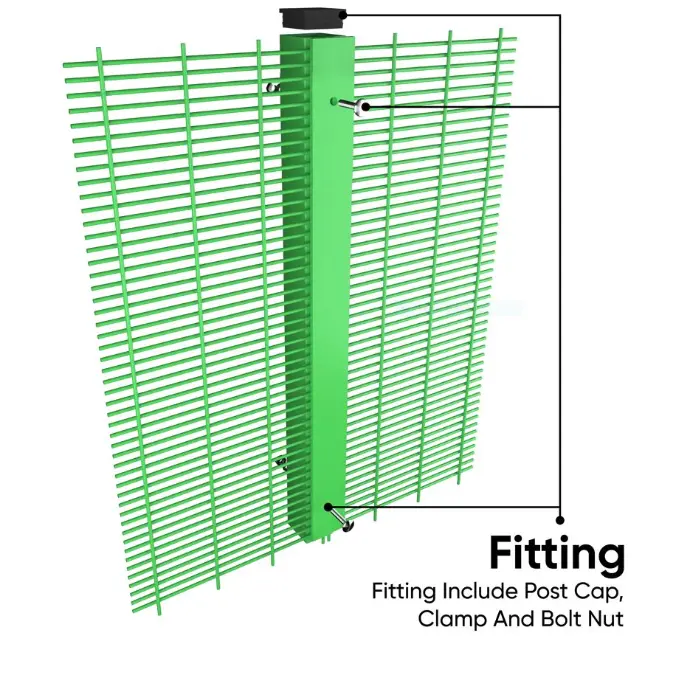

Fittings

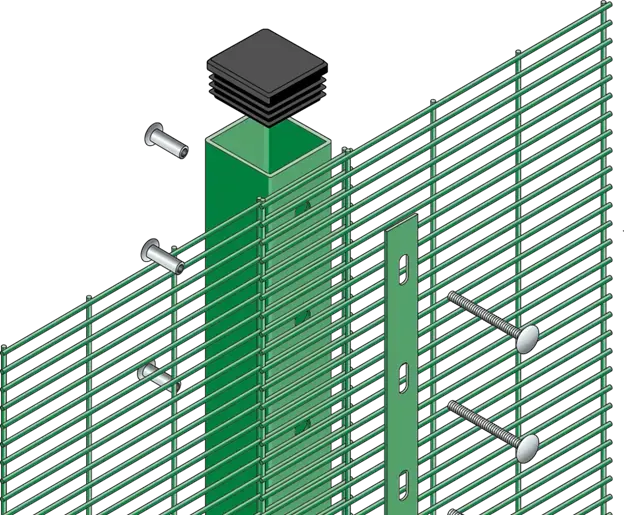

The installation of rigid metal clips fitting features 40x50mm dimensions or flat 50x5mm bars spreads across the entire post length to secure welded steel mesh panels. Steel bolts with round heads secure these fittings properly at positions spaced 400mm across the system.
- Secure Fastening: Round head 8mm bolts attach clips/bars at 400mm intervals for firm support.
- Tensile Strength: Min. 500 N/mm²
- Welding Strength: 50% of total tensile strength in accordance with EN 10223-7
Finishing Options
Hot-Dip Galvanizing
The steel components need hot-dip galvanizing treatment in compliance with BS EN ISO 1461 for extended durability through enhanced corrosion resistance.
Powder Coating
The components need to align with BS EN 13438 standards for hot-dip galvanizing with high-quality powder coating that enhances durability and appearance.
Marine-Grade Protection
A specialized marine-grade coating system must be applied to outdoor elements located within 500 meters of saltwater or estuarine since it provides strong protection against salt-induced corrosion.
PVC Coated
The PVC coating applied to the Welded Mesh Fence 3D50™ Fencing System offers several advantages with corrosion resistance in addition to durability and smooth surface features which create a lasting protective appearance.
Applications of Hi secure 476
