Welded Mesh Fence Secure 476 Double – Optimal Security Solution

Why Choose Our Welded Mesh Fence Secure Double?

The HiSecure 476 Double offers a robust double-profiled mesh fencing system, tailored for areas demanding high security. With its 4mm vertical and horizontal wires and compact mesh openings of 76.2x12.5mm, this system is engineered to provide an impregnable barrier.

Contact Us

Welded Mesh Fence Secure Double

Key Features of Secure 476 Double


Mesh Size

76.2x12.5mm with a special 2D profile for additional reinforcement

Wire Diameter

 4mm or 5mm Dia Vertical and Horizontal Wires

Material

Galvanized steel

Post Dimensions

40 x 40mm, 60 x 60mm, or 50 x 100mm depending on fence height

Standard Panel Width

2500 mm

Panel Heights

950 mm, 1450 mm, 1950 mm (stackable up to 6000 mm)

Tensile Strength

Min. 500 N/mm²

Welding Strength

50% of total tensile strength in accordance with EN 10223-7

Panel WidthS

2500 mm

Post Dimensions

50 x 50 mm (up to 1.5m high)

60 x 60 mm SHS (up to 3000 mm)

50 x 100 mm RHS (up to 6000 mm)

Post Centers

2510 mm

Key Components of Hi Secure 476 Double Components


Posts

Posts

Designed for substantial security needs, HiSecure 476 Double posts are available in sizes up to 50x100mm, equipped with several mounting options to ensure a firm foundation and versatility in installation:

  • In-ground installation
  • Base-plated for concrete setups
  • Wall-mounted with cranks for additional security



Panels:

Panels feature double layers of 4mm wires, creating a formidable mesh that resists cutting and climbing, making them ideal for high-security environments. Options for height customization up to 6000mm cater to varying security levels.


Panels
Fittings

Fittings

Durable fittings, including 40x50mm clips and 50x5mm flat bars, are used to securely attach panels to posts, ensuring stability and resistance against breaches

Gates

Complementary gates enhance the continuity of security, available in both manual and automated configurations to match the fencing system.

Gates

Finishing Options

Hot-Dip Galvanizing

All steel components shall be hot-dip galvanized in accordance with BS EN ISO 1461 to ensure superior corrosion protection and extended service life.

Powder Coating

For enhanced durability and aesthetic finish, components shall comply with BS EN 13438, involving hot-dip galvanizing followed by a high-quality powder coating process.

Marine-Grade Protection

For installations within 500 meters of saltwater or estuaries, a specialized marine-grade coating system shall be applied to provide robust resistance against salt-induced corrosion.

Standard Colors

Black

RAL 9005

Green

RAL 6005

Custom

custom colors are available upon request.

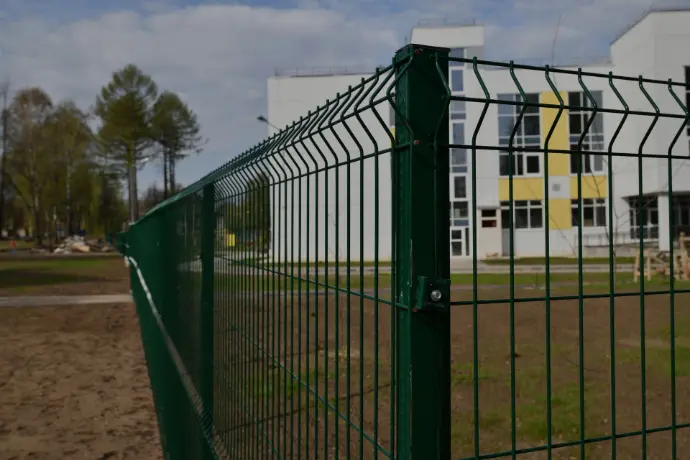

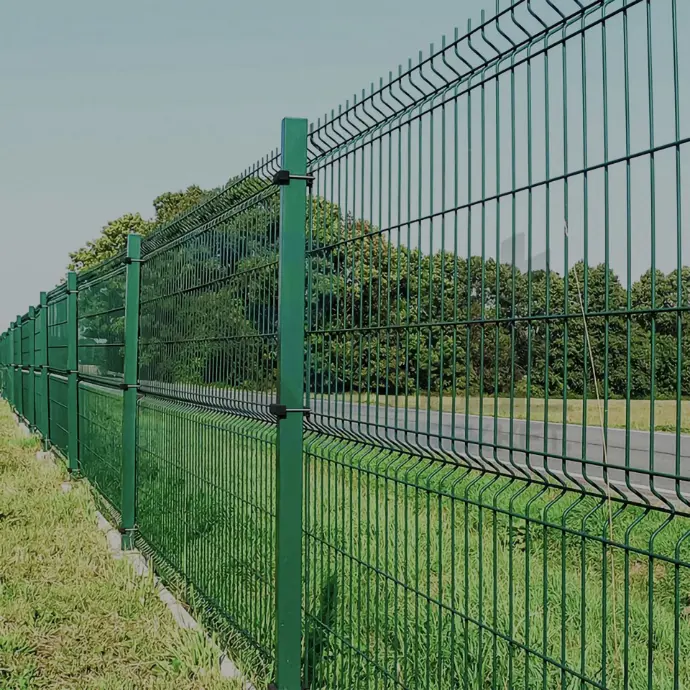

Applications of Hi secure 476 Double


Customization and Installation

HiTECH Fence supports a fully customizable installation process to align perfectly with client specifications. From the initial design phase through installation, our team provides end-to-end support, ensuring a seamless setup tailored to your site’s contours and specific security needs.
