Welded Mesh Decorative Fence – Elegance Meets Security

Welded Mesh Decorative Fence

The Welded Mesh Decorative Fence unites aesthetic appeal with protective properties to provide permanent decorative solutions for all properties. Aesthetic value and security protections define this fence which displays elaborate patterns along with a strong welded mesh design construction. The Welded Mesh Decorative Fence serves both safety and design needs while being suitable for residential, commercial and public areas. The fence uses weather-proof materials and optional customization that makes it both stunning and reliable for different settings.

Contact Us

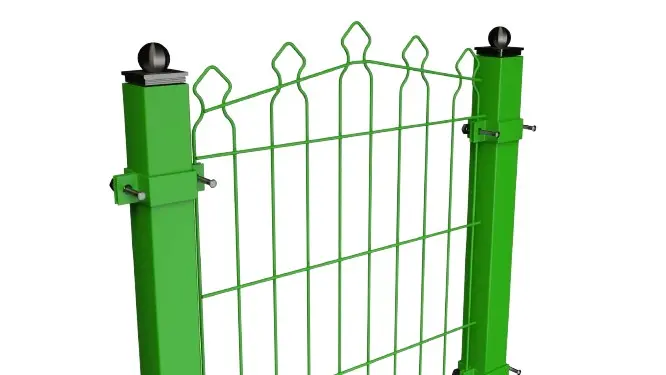

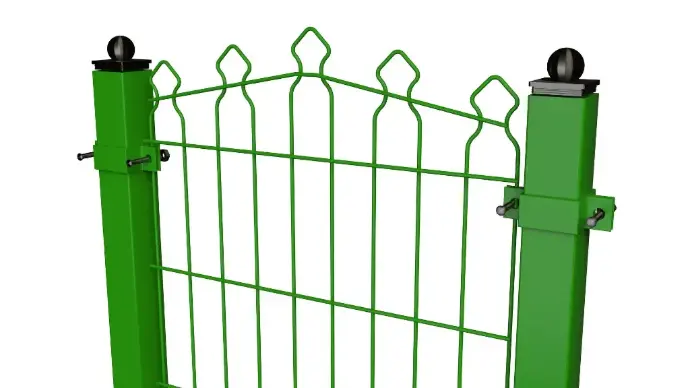

Mesh Decorative Fence
post
panel
fitting

Key Features of Welded Mesh Decorative Fence

Mesh SizeVariable according to clients' request
Wire Diameter4mm, 5mm or 6mm via Vertical and Horizontal Wires
MaterialGalvanized steel
Post Dimensions 50 x 50 mm (up to 1.5m high)
60 x 60 mm SHS (up to 3000 mm)
50 x 100 mm RHS (up to 6000 mm)
Standard Panel Width2500 mm, Customizable
Panel Heights950 mm, 1450 mm, 1950 mm (stackable up to 6000 mm)
Tensile StrengthMin. 500 N/mm²
Welding Strength50% of total tensile strength in accordance with EN 10223-7
Post Centers2500 mm, Customizable
ColorsBlack RAL 9005, Green RAL 6005, Customizable
Mesh Size
Variable according to clients' request
Wire Diameter
4mm, 5mm or 6mm via Vertical and Horizontal Wires
Material
Galvanized steel
Post Dimensions
50 x 50 mm (up to 1.5m high)
60 x 60 mm SHS (up to 3000 mm)
50 x 100 mm RHS (up to 6000 mm)
Standard Panel Width
2500 mm, Customizable
Panel Heights
950 mm, 1450 mm, 1950 mm (stackable up to 6000 mm)
Tensile Strength
Min. 500 N/mm²
Welding Strength
50% of total tensile strength in accordance with EN 10223-7
Post Centers
2500 mm, Customizable
Colors
Black RAL 9005, Green RAL 6005, Customizable

Request a Quote for Stylish Decorative Welded Mesh Fencing Today!

Key Components of Welded Mesh Decorative Fence

posts

Posts

The posts come in two profiles which are 60x60mm and 40x80mm to face intense force while providing versatile usage. The system allows installation using in-ground mounting or base attachment or wall installation methods and other various mounting methods.

  • Over-length set in the ground
  • Base plated for bolting onto concrete
  • Cranked for wall mounting
  • Covered with a plastic cap on top
  • Extended with a 45-degree crank on top
  • Extended with a double (Y) crank on top

Panels

The panels' 2490mm width equipped with 4mm wires produce both security and visual design excellence. The security barrier offers customizable heights from 1130mm to 1960mm and provides dimensions of 2490mm width with 4mm wires present.

  • Standard Panel Width: 2500 mm
  • Panel Heights: 950 mm, 1450 mm, 1950 mm (stackable up to 6000 mm)
  • Panel Widths: 2500 mm
panels

Finishing Options

Hot-Dip Galvanizing

The steel components need hot-dip galvanizing treatment in compliance with BS EN ISO 1461 for extended durability through enhanced corrosion resistance.

Powder Coating

The components need to align with BS EN 13438 standards for hot-dip galvanizing with high-quality powder coating that enhances durability and appearance.

Marine-Grade Protection

A specialized marine-grade coating system must be applied to outdoor elements located within 500 meters of saltwater or estuarine since it provides strong protection against salt-induced corrosion.

PVC Coated

The PVC coating applied to the Welded Mesh Fence 3D50™ Fencing System offers several advantages with corrosion resistance in addition to durability and smooth surface features which create a lasting protective appearance.

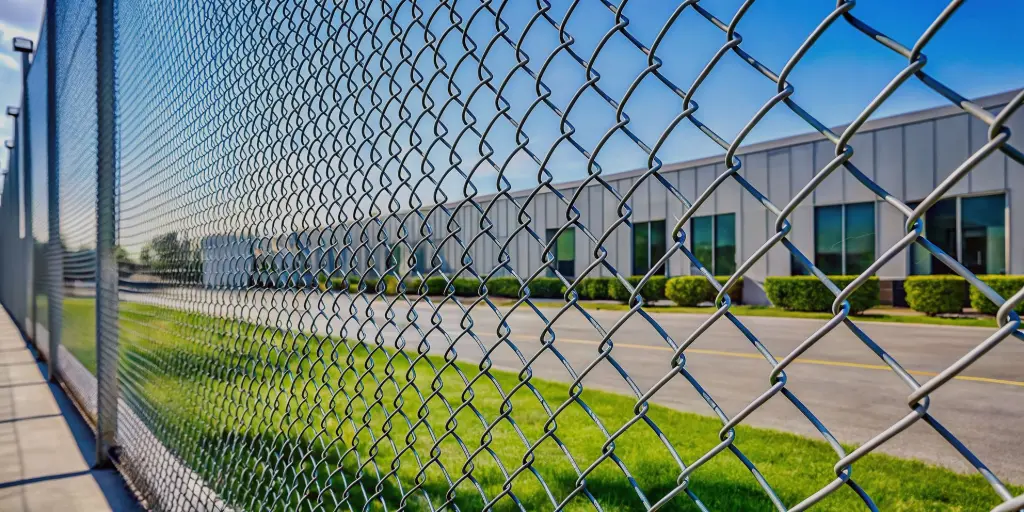

Applications of Welded Mesh Decorative Fence


welded mesh fence application1
welded mesh fence application1
welded mesh fence application1
