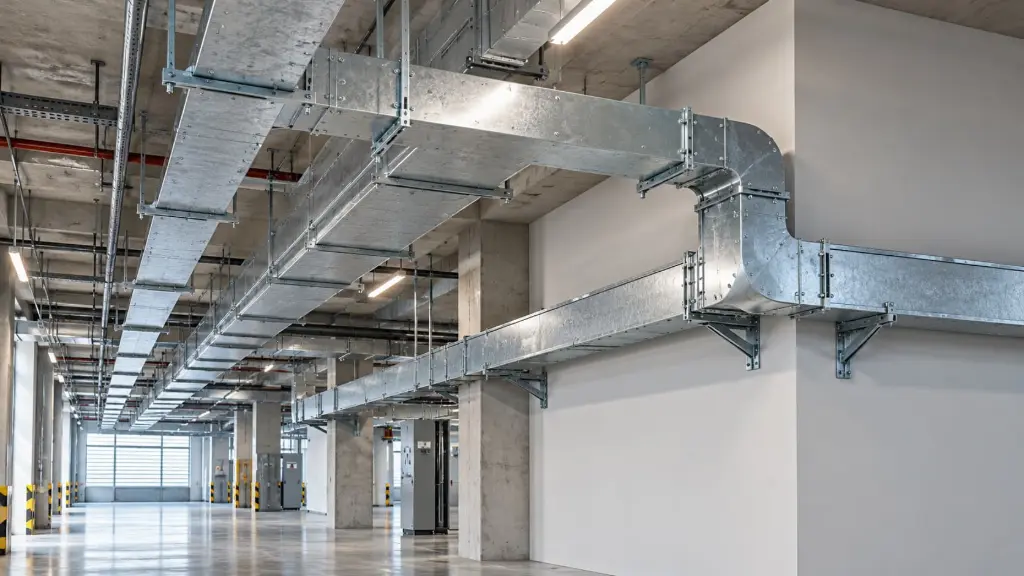

Cable tray covers help protect electrical cables from selected environmental and physical hazards in commercial buildings, industrial facilities, warehouses and infrastructure projects across Saudi Arabia. When specified correctly, they can reduce direct exposure to dust, falling debris, accidental contact and other conditions that may affect cable management systems.
However, a cover is not automatically required for every cable tray installation. Its suitability depends on the cable type, tray design, ventilation requirements, installation location and project specifications. Choosing the wrong cover can create maintenance difficulties or affect heat dissipation.
For electrical engineers, contractors, consultants and procurement teams, understanding the available cover types and their applications helps ensure that cable tray systems meet the requirements of the project.
What Is a Cable Tray Cover?
A cable tray cover is a component fitted over a compatible cable tray to provide an additional level of protection for the cables inside it. Covers may be designed for ladder trays, perforated trays or other compatible tray systems.
Depending on the design, a cover may help limit direct contact with falling dust, debris or other external materials. It may also provide a physical barrier over the cable route where the installation design requires one.
The level of protection depends on the cover construction, fit, material, fastening method and surrounding conditions. A standard tray cover should not be assumed to provide a weatherproof, watertight, fire rated or impact resistant enclosure unless the complete system has been designed and verified for that purpose.
Common Types of Cable Tray Covers
Cable tray covers are available in different designs to match the tray system and intended application. The appropriate option should be selected according to the required protection and the manufacturer's product specifications.
Solid Cable Tray Covers
Solid covers provide a continuous surface over the tray. They may be considered where the project requires a barrier against falling debris or direct accumulation of certain external materials.
Solid covers can also reduce direct exposure to sunlight when appropriately specified for outdoor use. However, covering a cable tray can affect heat dissipation, so the electrical design must confirm that cable temperature and current carrying capacity remain acceptable.
Ventilated Cable Tray Covers
Ventilated covers incorporate openings or a design that permits some airflow while providing a degree of physical protection. They may be suitable where the installation requires a compromise between coverage and ventilation.
The actual airflow and protection level depend on the design. Ventilated covers should not be assumed to provide the same resistance to dust, moisture or debris as a solid cover.
Outdoor Cable Tray Covers
Outdoor covers are selected for cable routes exposed to environmental conditions such as sunlight, rain, windblown dust and falling debris. Material and finish selection are particularly important when the system is installed in demanding environments.
For projects in Saudi Arabia, buyers should assess ultraviolet exposure, ambient temperatures, corrosion conditions and the possibility of wind affecting the cover or its fixings. The cover and supporting tray must be compatible with the installation conditions.
Heavy Duty Covers
Some projects require covers designed for more demanding physical conditions. A heavy duty description should always be supported by actual product specifications rather than treated as a universal rating.
Where accidental impact, falling objects or other mechanical hazards are a concern, the project designer should identify the required performance and confirm that the cover system is suitable for that purpose.
Benefits of Cable Tray Covers
The main benefit of a cable tray cover is the additional barrier it provides over the cable route. Depending on the product and installation, this can help reduce exposure to falling debris and selected environmental hazards.
Covers can also create a more orderly installation and help protect cables in locations where other building or industrial activities take place nearby. In some situations, they can limit direct sunlight exposure and reduce the likelihood of objects entering the tray from above.
These benefits should be considered alongside the need for cable ventilation, inspection and maintenance. A cover does not eliminate the need for correct cable selection, suitable tray loading, appropriate support spacing or regular inspection.
When Should a Cable Tray Cover Be Used?
The decision to install a cover should follow a review of the installation environment and project requirements.
In indoor commercial buildings, covers may be appropriate where cable routes pass through areas exposed to dust, maintenance activity or falling debris. The designer should also consider whether the tray is installed above a ceiling, inside an electrical room or in an accessible service area.
In industrial facilities, covers may be useful where the cable route is exposed to process debris or other site conditions. If chemicals, moisture or elevated temperatures are present, the material and cover design must be suitable for the specific exposure.
Outdoor cable routes may need covers where environmental exposure justifies the additional protection. However, a standard cover should not be treated as a substitute for a properly designed enclosure when protection against water ingress or severe environmental conditions is required. For every application, the decision should be based on the relevant electrical requirements, manufacturer's guidance and approved project drawings.
Choosing Cable Tray Cover Materials in Saudi Arabia
Material selection is particularly important for installations across the Kingdom because environmental conditions vary between inland locations, coastal areas and industrial sites.
Galvanized Steel Covers
Galvanized steel covers combine the structural properties of steel with a protective zinc coating. They may be suitable for many industrial and commercial applications when the coating specification matches the exposure conditions. Buyers should confirm the galvanizing method and required corrosion protection, especially for outdoor or coastal installations.
Aluminum Covers
Aluminum covers are relatively lightweight and may be useful where reducing handling weight is beneficial. Their suitability depends on the required structural performance, environmental exposure and compatibility with the supporting system.
Where aluminum is connected to other metals, the design should consider the risk of galvanic corrosion under conditions where moisture is present.
Stainless Steel Covers
Stainless steel covers may be appropriate for selected corrosive or demanding environments. The correct grade depends on the specific exposure, including any presence of chlorides, chemicals or cleaning agents. The material should be specified according to project requirements rather than assuming that every stainless steel grade offers the same corrosion resistance.
Important Technical Considerations Before Installation
Before specifying a cover, verify that it matches the tray width, side rail design and connection arrangement. Covers and fittings should be compatible with the selected cable tray system.
Cable temperature is another important consideration. Adding a cover can change the thermal conditions around installed cables. The engineer should assess whether the cable arrangement and cover affect the permitted current carrying capacity or other electrical design requirements.
Wind exposure should also be considered for outdoor installations. Covers and their fixings must be suitable for the expected conditions, and the supporting tray system must be properly secured. Finally, ensure that the cover does not obstruct required access, inspection, cable identification or maintenance. The design should allow authorized personnel to remove or secure covers safely when necessary.
Cable Tray Covers and Corrosion Protection
The tray and its cover should provide compatible corrosion protection. Using different materials or finishes across the same cable route may introduce compatibility issues, especially when dissimilar metals are in contact under damp conditions.
For installations in coastal Saudi Arabia, assess exposure to airborne salts and moisture. For industrial environments, consider the chemicals and contaminants present at the site.
Where the project specifies galvanized steel, stainless steel or another protective system, confirm that the cover, tray, fasteners and associated fittings meet the required specification. A protective finish should be selected according to documented environmental conditions rather than appearance alone.
What to Include in a Cable Tray Cover Quotation Request
To obtain an accurate quotation, provide the supplier with the tray type, width, required cover design, material and protective finish. Include the route length, installation location and quantity of covers required.
Where possible, share drawings and specify whether the installation is indoors or outdoors. Identify any project requirements relating to corrosion resistance, ventilation, mechanical protection or technical documentation.
Also confirm whether the quotation should include clamps, fasteners, connectors and other accessories required to secure the covers. These details help reduce uncertainty during procurement and installation.
Selecting the Right Cable Tray Cover
Cable tray covers can provide useful additional protection, but their effectiveness depends on choosing the right design for the application. Material, ventilation, environmental exposure, mechanical requirements and compatibility with the existing tray should all be considered before procurement.
Hitech Fence supports customers seeking industrial and cable management solutions in Saudi Arabia. Project teams should evaluate cover specifications against their approved drawings and installation requirements before selecting a system.
For a project specific quotation, provide the tray dimensions, required material, finish, installation environment and relevant technical specifications. This helps establish which available options are suitable for further technical review.
