Welded Mesh Fence 2D656 – Ultimate Security for Commercial Spaces
HiWeld 2D656™

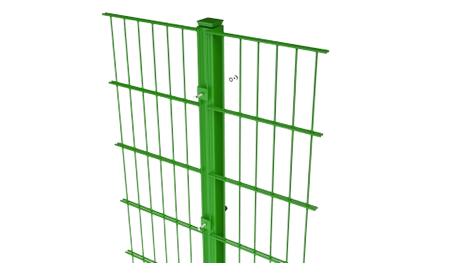

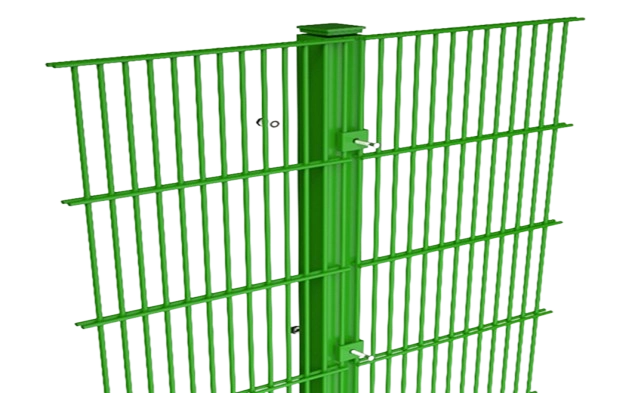

These panels feature a flat profile, constructed from twin 6mm diameter horizontal wires on either side of 5mm diameter vertical wires, known as 656. This design provides excellent defense against vandals and intruders. HiWeld 2D656TM is the most cost-effective system for large commercial fence projects that require rigid panels to achieve ultimate security.an ideal solution for large sites. It serves as an excellent alternative to chain-link fences.

Key Features of HiWeld 2D656™
Mesh Size |
two sections of 200 x 50mm and five sections of 200 x 25mm |
Wire Diameter |
4mm vertical and 6mm horizontal wires |
Material |
Galvanized steel |
Post Dimensions | 40 x 40mm, 60 x 60mm, or 50 x 100mm depending on fence height |
Standard Panel Width | 2500 mm |
Panel Heights | 950 mm, 1450 mm, 1950 mm (stackable up to 6000 mm) |
Tensile Strength | Min. 500 N/mm² |
Welding Strength | 50% of total tensile strength in accordance with EN 10223-7 |
Panel Widths | 2500 mm |
Post Dimensions | 50 x 50 mm (up to 1.5m high) 60 x 60 mm SHS (up to 3000 mm) 50 x 100 mm RHS (up to 6000 mm) |
Post Centers | 2510 mm |
Components of HiWeld 2D656 Fencing System

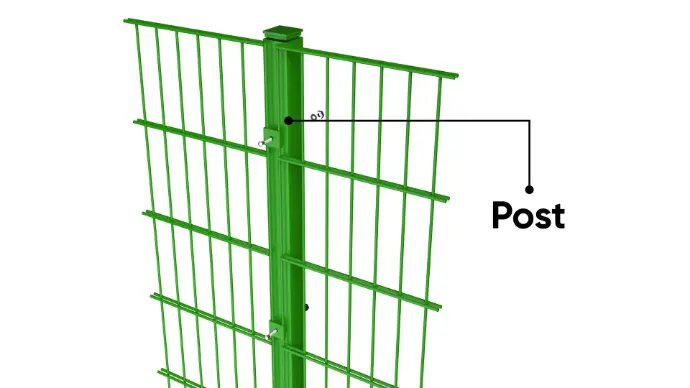

Posts
HiWeld 2D656TM is designed to secure properties of varying scales, with its name in-spired by its hollow steel posts. These posts come in measurements of 40x40mm, 60x60mm, or 50x100mm, depending on the fence's height, providing the necessary strength to withstand pressure and force. The posts determine the fence's length and offer several mounting options
- Over-length set in the ground
- Base plated for bolting onto concrete
- Cranked for wall mounting
- Covered with a plastic cap on top
- Extended with a 45-degree crank on top
- Extended with a double (Y) crank on top

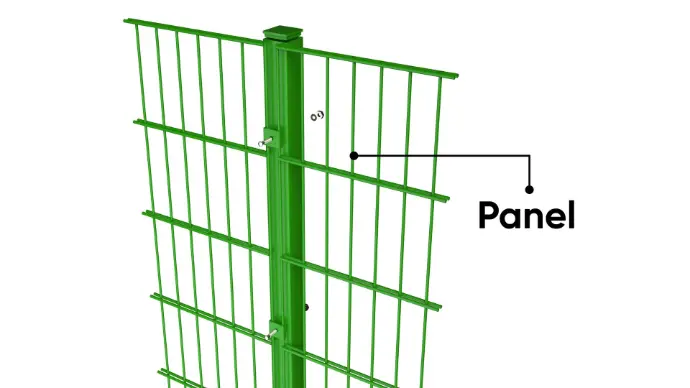

Panels
The mesh between the posts is known as a panel. These mesh panels feature double horizontal wires of 6mm diameter and single vertical wires of 5mm diameter with a flat profile. The wires are welded at junctions, forming a rectangular opening of 50x200mm, and are treated with a galvanized zinc alloy for enhanced durability. The standard panel heights are 950mm, 1450mm, and 1950mm, and can be stacked to create a fence up to 6000mm high.
To enhance security and prevent climbing, options include
- 30mm projecting spikes
- 3 or 6 barbed wires
- 3 or 6 barbed wires with a concertina role
The tensile strength of the wires is a minimum of 500 N/mm², with the welding strength at least 50% of the total tensile strength of the wire, in compliance with EN 10223-7

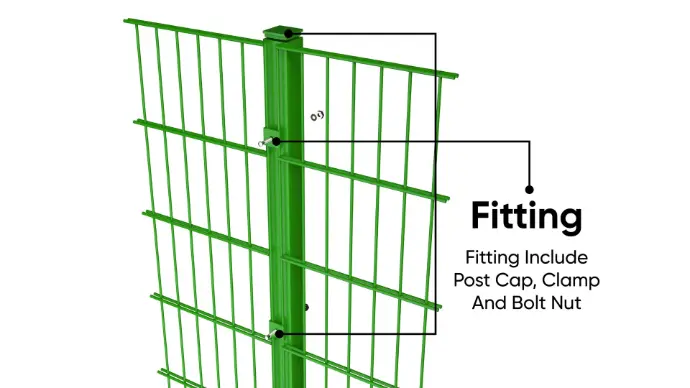

Fittings
The system uses rigid 40x50mm metal clips or 50x5mm flat bars along the full length of the post to secure the welded steel mesh panels. These fittings are bolted every 400mm using 8mm diameter round head bolts
Gates
Matching single leaf and double leaf gates are available for the HiWeld 2D656TM fencing system. These gates come with a variety of opening mechanisms and can be manually or automatically operated.

Finishing Options
Hot-Dip Galvanizing
All steel components shall be hot-dip galvanized in accordance with BS EN ISO 1461 to ensure superior corrosion protection and extended service life.
Powder Coating
For enhanced durability and aesthetic finish, components shall comply with BS EN 13438, involving hot-dip galvanizing followed by a high-quality powder coating process.
Marine-Grade Protection
For installations within 500 meters of saltwater or estuaries, a specialized marine-grade coating system shall be applied to provide robust resistance against salt-induced corrosion.
Standard Colors
Black |
RAL 9005 |
Green |
RAL 6005
|
Custom |
custom colors are available upon request.
|
