Welded Mesh Fence 3D38
The Welded Mesh Fence 3D38 functions as an industrial-grade security fencing system made to protect public buildings along with industrial sites. Both vertical and horizontal dimensions of this fence incorporate 4 to 5 mm sturdy wires while highlighting a unique 3D profile design. The Welded Mesh Fence 3D38 delivers security protection through non-chain-link fence technology at affordable costs along with attractive aesthetics as decorative fence.
Components of Welded Mesh Fence 3D38
The Welded Mesh Fence 3D38 fencing system includes three main components that include fencing posts and panels and fittings. Here follows an in-depth description of the specific characteristics for every system element.
Posts
The Welded Mesh Fence 3D38 uses hollow steel posts to accomplish its function in securing properties like security mesh fence of different scales in an application that derived its name from these steel posts. The posts are available in sizes such as 50x50mm, 60x60mm and 50x100mm based on the fence height to offer necessary strength against pressure and force. Several mounting alternatives are decided by the length and shape of the fence posts.
Over-length set in the ground
Base plated for bolting onto concrete
Cranked for wall mounting
Covered with a plastic cap on top
Extended with a 45-degree crank on top
Extended with a double (Y) crank on top
Panels:
Designed at 2500 mm width, mesh panels use welded 4mm or 5mm vertical and horizontal wires that create rectangular openings with dimensions of 38x200mm. A specialized 3D profile on these panels reinforces their structure. The standard heights of panels range between 950mm and 1950mm while stacked fence options reach heights of up to 6000 mm. Security features along with climbing deterrents include:
30mm projecting spikes
Optional barbed wires (3 or 6 rows)
Barbed wire with concertina roll
Fittings

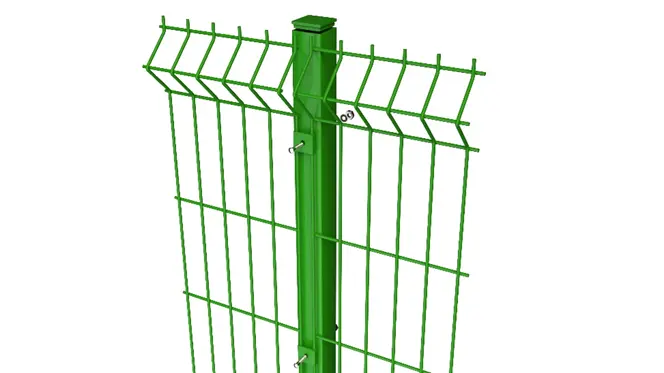

The system attaches rigid 40x50mm metal clips or 50x5mm flat bars which extend from end to end along the post to hold welded steel mesh panels. The fittings need to be fastened every 400mm using 8mm diameter round head bolts.
Metal clips or flat bars for panel attachment
Round head 8mm diameter bolts for secure fastening
400mm intervals between attachment points
Tamper-proof fixings for enhanced security
Rust-resistant coated hardware for durability
Users can customize fittings which fulfill different installation requirements
Finishing Options
Hot-Dip Galvanizing
The steel components need to receive a hot-dip galvanization process based on BS EN ISO 1461 standards for obtaining maximum corrosion protection and longer service duration.
Powder Coating
The specification BS EN 13438 outlines hot-dip galvanizing as a requirement that must be followed by high-quality powder coating for achieving improved durability and aesthetic finish.
Marine-Grade Protection
The requirement exists for installations that approach within 500 meters of saltwater or estuarine to receive specific marine-grade coating for salt resistance protection.
PVC Coated
The PVC coating applied to the Welded Mesh Fence 3D38™ Fencing System offers several advantages with corrosion resistance in addition to durability and smooth surface features which create a lasting protective appearance
