HiWeld 3D50™ V Mesh Profiled Fencing System – Security and Durability
HiWeld 3D50™
HiWeld 3D50™ is a welded mesh fencing system designed to deliver medium-security solutions with enhanced durability. Manufactured using 5mm vertical and horizontal galvanized steel wires, the fence features a 50x200mm rectangular mesh opening with a unique 3D profile for added reinforcement. This cost-effective fencing solution is ideal for large sites, providing a high-quality alternative to chain-link fences.
Available Types
Key Features of HiWeld 3D50™
The HiWeld 3D50™ system includes customizable options to meet specific security and site requirements, such as barbed wire, razor wire, and additional fencing accessories for enhanced deterrence.
|
Mesh Size |
50 mm x 200 mm |
| Wire Diameter |
4mm or 5mm vertical and horizontal wires |
Material |
Galvanized steel |
Post Dimensions | 40 x 40mm, 60 x 60mm, or 50 x 100mm depending on fence height |
Standard Panel Width | 2500 mm |
Panel Heights | 950 mm, 1450 mm, 1950 mm (stackable up to 6000 mm) |
Tensile Strength | Min. 500 N/mm² |
Welding Strength | 50% of total tensile strength in accordance with EN 10223-7 |
Panel Widths | 2500 mm |
Post Dimensions | 50 x 50 mm (up to 1.5m high) 60 x 60 mm SHS (up to 3000 mm) 50 x 100 mm RHS (up to 6000 mm) |
Post Centers | 2510 mm |
Components of HiWeld 3D50™ Fencing System
The HiWeld 3D50™ fencing system comprises three main components: Posts, Panels, and Fittings. Below is a detailed breakdown of each component's specifications:
Posts
HiWeld 3D50™ posts are hollow steel sections designed to support the fence structure. The posts are available in different configurations based on height and installation requirements:
Installation Methods:
- Over-length set in-ground
- Base plated for bolting onto concrete
- Cranked to suit wall mounting
- Plastic cap for post tops
- Post Sizes: 40x40 mm, 60x60 mm, 50x100 mm
- Extension with 45° cranked or double (Y) cranked tops for added deterrence

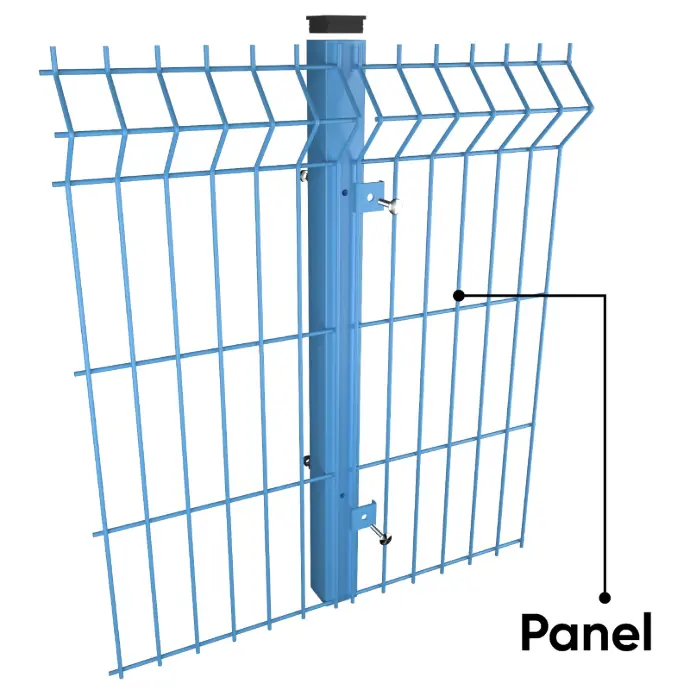

Panels:
The mesh panels are crafted from welded steel wires with a 50x200mm mesh design, featuring a special 3D profile for extra reinforcement. The standard panel width is 2500 mm, while panel heights can range from 950 mm to 1950 mm, with options to stack panels for fences up to 6000 mm in height. Anti-climb measures include:
- 30mm projecting spikes
- Optional barbed wires (3 or 6 rows)
- Barbed wire with concertina roll

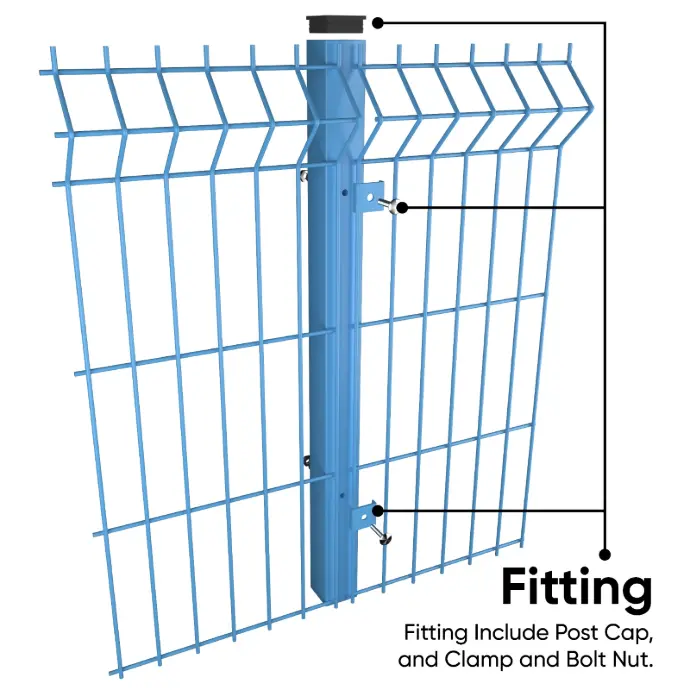

Fittings
Metal clips or flat bars are used to secure the mesh panels to the posts. Fittings are spaced at 400mm intervals, using round head 8mm diameter bolts for attachment.
Finishing Options
Standard Finish
Adapt these three columns to fit your design need. To duplicate, delete or move columns, select the column and use the top icons to perform your action.
Powder Coated Finish
Hot-dip galvanized and powder-coated as per BS EN 13438.
Marine Coat
Additional protective layer for installations within 500 meters of saltwater or estuaries.
Standard Colors
Black |
RAL 9005 |
|
Green |
RAL 6005
|
|
Custom |
custom colors are available upon request.
|
Applications of HiWeld 3D50™
Installation Process
At HITECH Fence, we provide a complete solution from design to installation. Our experts guide you through every stage of the process to ensure your HiWeld 3D50™ fence is perfectly suited to your requirements.
Manufacturing and Design | Installation Services | Aftercare |
Why Choose HiWeld 3D50™?
HiWeld 3D50™ is specifically engineered for medium-security needs, offering several advantages over traditional fencing systems:
- Corrosion Resistance: Manufactured with galvanized steel and powder-coated for additional protection, ensuring long-lasting durability.
- Anti-Climb Design: The V-shaped mesh profile with reinforcement folds deters climbing while maintaining structural integrity.
- Customizable Security Features: Equipped to handle barbed wire, razor wire, or projecting spikes for higher security.
- Aesthetic and Functional: The fence is designed to provide robust protection without appearing overly industrial, making it suitable for both urban and rural settings.
- Easy Installation: Various mounting options, including base plates and cranked posts, make the system adaptable to different site conditions, including sloping ground.
