Welded Mesh Fence 2D656 – Ultimate Security for Commercial Spaces

Welded Mesh Fence 2D656

The Welded Mesh Fence 2D656 contains a flat design that combines two 6mm diameter horizontal wires and 5mm diameter vertical wires for top-level protection against break-ins by vandals and intruders. Business operators seeking high security fences benefit from the inexpensive yet durable Welded Mesh Fence 2D656 which delivers inflexible panels during construction. Welded Mesh Fence 2D656 acts as a reliable replacement over chain-link fences by delivering superior durability and security benefits.

HiWeld 2D656™
post
panel
fitting

Key Features of Welded Mesh Fence 2D656

Mesh SizeTwo sections of 200 x 50mm and five sections of 200 x 25mm
Wire Diameter5mm vertical and 6mm horizontal wires
MaterialGalvanized steel
Post Dimensions50 x 50mm, 60 x 60mm, or 50 x 100mm depending on fence height
Panel Heights950 mm, 1450 mm, 1950 mm (stackable up to 6000 mm)
Tensile StrengthMin. 500 N/mm²
Welding Strength50% of total tensile strength in accordance with EN 10223-7
Panel Widths2500 mm, Customizable
Post Dimensions (Detailed)50 x 50 mm (up to 1.5m high), 60 x 60 mm SHS (up to 3000 mm), 50 x 100 mm RHS (up to 6000 mm)
Post Centers2510 mm
ColorsRAL 9005 Black, RAL 6005 Green, Customizable
Mesh Size
Two sections of 200 x 50mm and five sections of 200 x 25mm
Wire Diameter
5mm vertical and 6mm horizontal wires
Material
Galvanized steel
Post Dimensions
50 x 50mm, 60 x 60mm, or 50 x 100mm depending on fence height
Panel Heights
950 mm, 1450 mm, 1950 mm (stackable up to 6000 mm)
Tensile Strength
Min. 500 N/mm²
Welding Strength
50% of total tensile strength in accordance with EN 10223-7
Panel Widths
2500 mm, Customizable
Post Dimensions (Detailed)
50 x 50 mm (up to 1.5m high), 60 x 60 mm SHS (up to 3000 mm), 50 x 100 mm RHS (up to 6000 mm)
Post Centers
2510 mm
Colors
RAL 9005 Black, RAL 6005 Green, Customizable

  Components of Welded Mesh Fence 2D656


post

Posts

The design of Welded Mesh Fence 2D656 provides property security at various scales through its hollow steel posts which serve as the product name inspiration. Different heights of welded fence require posts to measure either 50x50mm or 60x60mm or 50x100mm for adequate strength against pressure and force. The fence measurement depends on the posts while allowing several possible installation choices.

  • Over-length set in the ground
  • Base plated for bolting onto concrete
  • Cranked for wall mounting
  • Covered with a plastic cap on top
  • Extended with a 45-degree crank on top

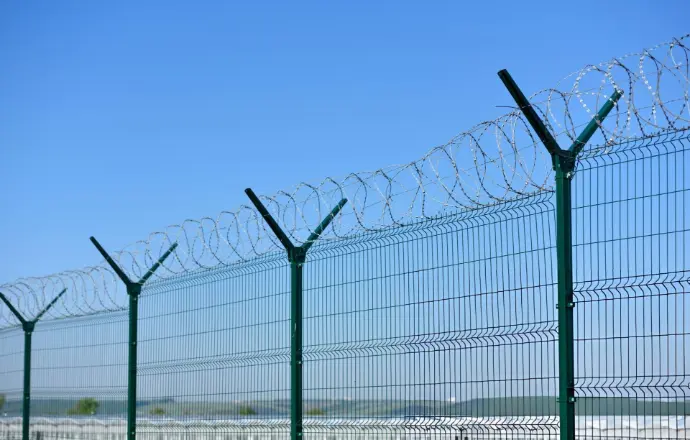

  • Extended with a double (Y) crank on top

Panels

The mesh section connecting the fence posts forms a panel between them. Mesh panels include welding double 6mm horizontal wires together with single 5mm vertical wires that use a flat wire profile. The mesh panels are created when wires are welded at intersections to form 50x200mm rectangular openings before receiving a galvanization treatment with zinc alloy for improved longevity. The standard height options for fence panels measure 950mm and 1450mm and 1950mm yet they can be used together as a 6000mm high fence.

Additional security measures for preventing climbing consist of:

  • 30mm projecting spikes
  • 3 or 6 barbed wires
  • The combination of 3 or 6 barbed wires includes a concertina roll addition.

The wires meet a minimum tensile requirement of 500 N/mm² and the welding point should show at least 50% of wire strength according to EN 10223-7.

panel
fitting

Fittings

The system uses rigid 40x50mm metal clips or 50x5mm flat bars along the full length of the post to secure the welded steel mesh panels. These fittings are bolted every 400mm using 8mm diameter round head bolts.

  • Secure Fastening: Round head 8mm bolts attach clips/bars at 400mm intervals for firm support.
  • Tensile Strength: Min. 500 N/mm²
  • Welding Strength: 50% of total tensile strength in accordance with EN 10223-7

Finishing Options

Hot-Dip Galvanizing

The steel components need hot-dip galvanizing treatment in compliance with BS EN ISO 1461 for extended durability through enhanced corrosion resistance.

Powder Coating

The components need to align with BS EN 13438 standards for hot-dip galvanizing with high-quality powder coating that enhances durability and appearance.

Marine-Grade Protection

A specialized marine-grade coating system must be applied to outdoor elements located within 500 meters of saltwater or estuarine since it provides strong protection against salt-induced corrosion.

PVC Coated

The PVC coating applied to the Welded Mesh Fence 3D50™ Fencing System offers several advantages with corrosion resistance in addition to durability and smooth surface features which create a lasting protective appearance.

Reasons to Choose Hitech Fence

Top Reasons to Choose Hitech Fence

Hitech Fence maintains a team which exists to help customers from project initiation through completion. Our dedication surpasses standard manufacturing and design of Welded Mesh Fence 2D656 for delivering customized solutions to your project. Our company offers premium service which enables complete customer fulfilment for each one of our clients.

All support services extend across your project duration beginning with the first day until project completion. Our organization takes charge of Welded Mesh Fence 2D656 design and production activities in addition to providing full installation services. We have a complete understanding of the fencing project challenges no matter how big or small they may be. The experts at our organization provide immediate guidance and assume responsibility for handling all complicated requirements.

Applications of Welded Mesh Fence 2D656

Residential Areas
Commercial Properties
Commercial Properties

Downloads
